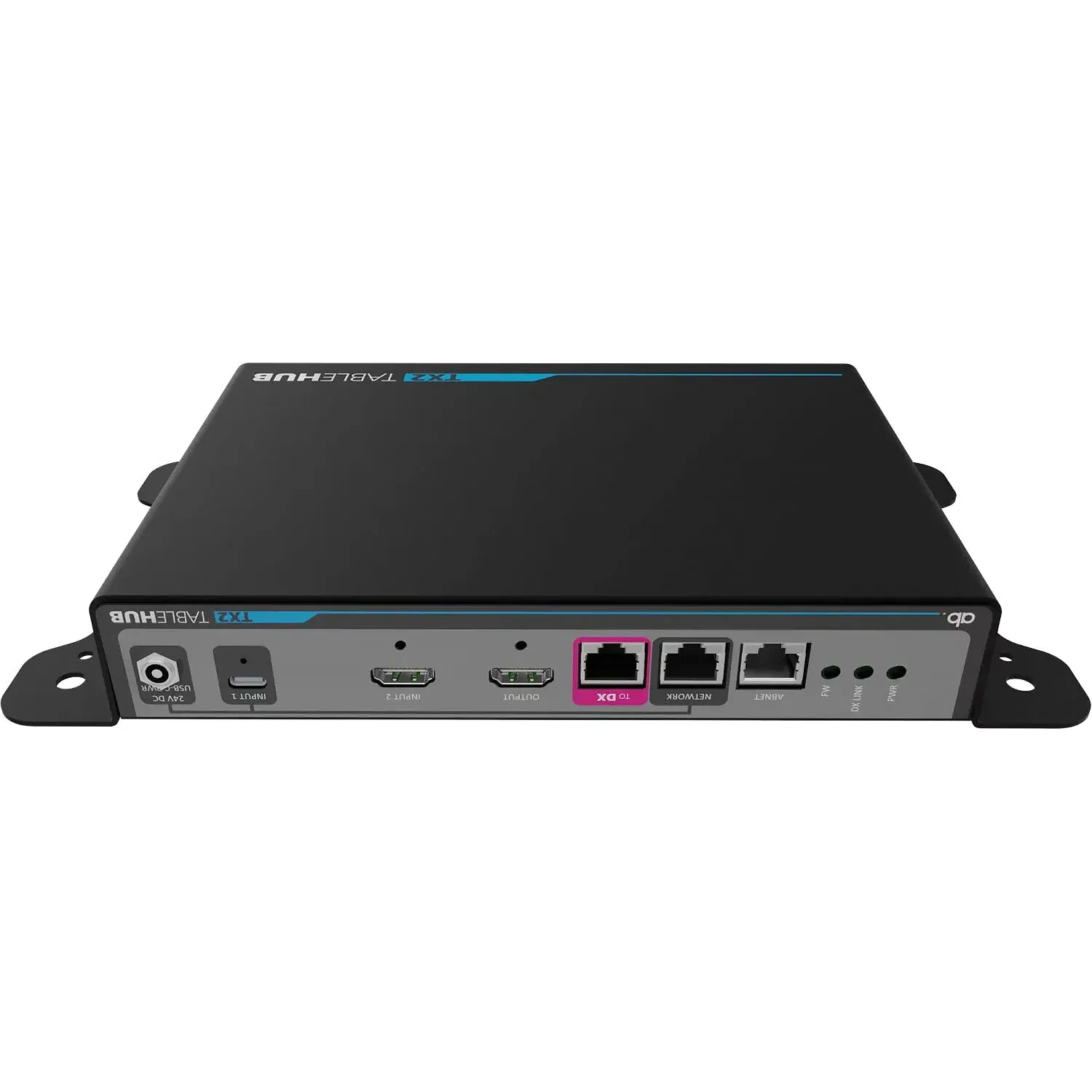

Ashton Bentley TX2 Table Hub for AV Systems

The Ashton Bentley TX2 Table Hub is designed to work in conjunction with the separately available DX2 Room Hub to create a cost-effective two-box AV infrastructure for meeting rooms. The TX2 enables easy connection of laptops and other devices using USB-C or HDMI inputs and delivers uncompressed 4K60 4:4:4 8-bit video with independent EDID control, ensuring superior video quality and compatibility. Connecting to the DX2 via the included Cat 7 cable, it transmits video, audio, USB, and control signals while receiving power from the DX2, eliminating the need for additional power sources.

Its scalable HDMI output allows local monitoring or content ingest, making it an ideal addition to modern collaborative spaces. With eight mounting holes, the flexible TX2 can be installed under tables, in lecterns, or wherever laptop connectivity is accessible. It offers a robust USB 2.0 connection with up to 350 Mb/s data rates and supports optional USB-C laptop charging with an additional 24 VDC power supply. Featuring intuitive signal auto-sensing and HDCP management, the TX2 enhances video conferencing and content sharing in collaborative, professional environments.

Flexible Connectivity

• USB-C and HDMI inputs for laptops and other devices
• Scalable HDMI output for local monitor or content ingest
• Dedicated RJ45 port for control and signal output to DX2 Room Hub
• Two other RJ45 ports for ABNET control input and network integration

Quality Video

• Supports uncompressed 4K60 4:4:4 8-bit video
• Independent EDID control of each input for multi-device setups
• HDCP 2.2 support (can be disabled for compatibility)
• Input signal sensing for automatic switching

Practical Design

• Compact, mountable design for installation under a table or lectern
• Powered directly from DX2 via the included Cat 7 Cable
• Optional USB-C laptop charging with separately available 24 VDC power supply
