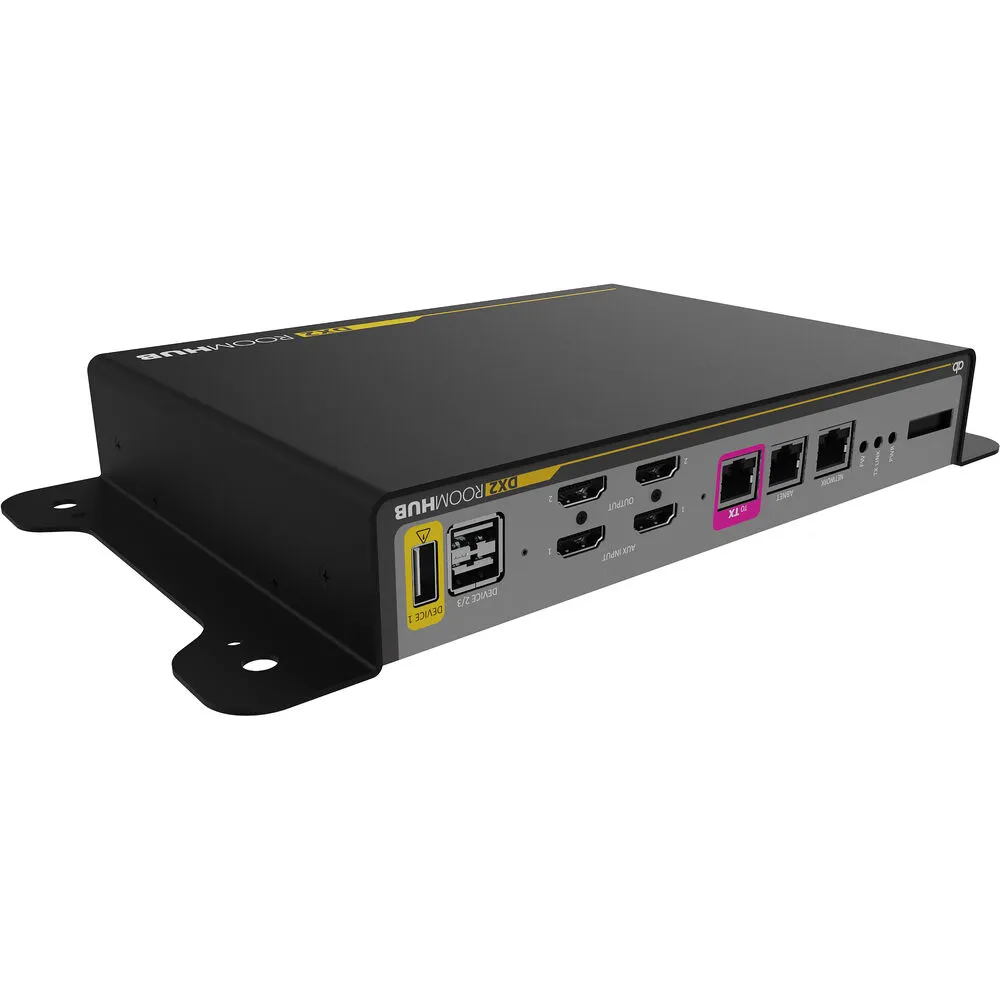

Ashton Bentley DX2 Room Hub for AV Systems

The Ashton Bentley DX2 Room Hub serves as the central control system and signal routing solution for meeting rooms when paired with the separately available TX2 Table Hub. The simplified, two-box AV infrastructure supports uncompressed 4K60 4:4:4 8-bit video and sports two signal-sensing HDMI inputs and two independently scalable HDMI outputs, providing flexible content routing for both local and remote presentations.

With independent EDID management for every input, an embedded Teams and Zoom engine, and support for BYOD (bring your own device) mode, the DX2 ensures compatibility with various displays and video conferencing devices. It also features three USB-A device ports, with two offering configurable power control and three RJ45 ports for Ethernet connectivity and device management. One RJ45 port is dedicated to powering and communicating with the TX2 via a Cat 6a or Cat 7 cable. Additional control ports include one USB-B port, two 3.5mm jacks for AB displays, and one 9-pin D-Sub connector for serial control. Powered by the included 24 VDC adapter, the DX2 provides versatile, streamlined AV management for professional meeting environments.

Flexible Connectivity

• Dedicated RJ45 port for video, audio, USB, and control signal input from TX2 Table Hub
• Two HDMI auxiliary input ports with automatic signal sensing
• Two HDMI output ports with independent scaling for display compatibility
• Two other RJ45 ports for ABNET control input and network integration
• Three USB-A ports, with two supporting configurable power control
• One USB-B control port, two 3.5mm AB display jacks, one 9-pin D-Sub serial port for expansive compatibility

Quality Video

• Supports uncompressed 4K60 4:4:4 8-bit video
• Independent EDID control of each input for multi-device setups
• HDCP 2.2 support (can be disabled for compatibility)
• Input signal sensing for automatic switching

Versatile Control

• Embedded engine for Microsoft Teams and Zoom for platform-native conferencing
• Supports BYOD (bring your own device) mode for flexible laptop connectivity using the TX2
• Supports programmable CEC, RS-232, and Cisco codec control for compatibility
• Web-based system configurator for easy setup and control

Practical Design

• Compact form factor ideal for mounting near displays, video bars, or other VC devices
• Powered by an included 24 VDC universal power supply
• Provides PoC power to TX2 via Cat 6a or Cat 7 cable
• OLED status display for real-time diagnostics and system monitoring
