Yealink ZVCS90-C5-004 Zoom Rooms Conferencing System for ProAV Rooms

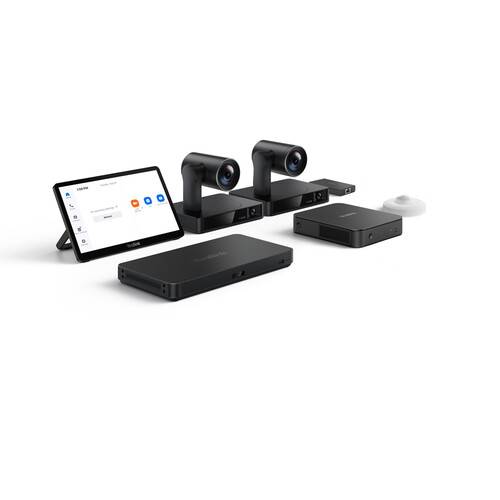

The ZVCS90-C5-004 Zoom Rooms Conferencing System for ProAV Rooms from Yealink includes the MCore Pro mini-PC, MTouch Plus touch panel, two UVC86 4K dual-eye intelligent tracking PTZ cameras, an MTouch Plus touch panel, the AVHub audio/video processor, a USB-to-Ethernet BYOD extender, and a RoomSensor meeting room motion sensor.

The 8MP UVC86 4K Dual-Eye Intelligent Tracking PTZ Camera from Yealink combines a PTZ camera with a 90° diagonal FOV and a panoramic lens with a 120° FOV to clearly display each participant in a meeting. Intelligent tracking functions include auto framing, speaker tracking, and presenter tracking. The UVC86 camera's 12x optical and 1.7x digital zoom combine to create a maximum 20x zoom for getting closeup views.

Has both 3.5mm line and RJ11 audio inputs and can be integrated with the Yealink VCM34 microphone array or VCM38 ceiling microphone combined with the MSpeaker II soundbar

The Native Zoom Rooms Kit from Yealink features an MCore Pro compact computer, a RoomSensor meeting room sensor, and an MTouch E2 touchscreen control panel ready with pre-installed compatibility for Zoom Rooms. Meeting status and settings are displayed on the MTouch E2, allowing for streamlined and user-friendly collaborative conferencing.

Both the miniature computer and touchscreen have multiple interface options and come packaged with mounting hardware, giving one the choice of tabletop and wall-mounted configuration. The RoomSensor works with the controller to detect when someone walks into a room to trigger a meeting. This kit is compatible with the optional UVC34 and UVC40 All-in-One USB video bars, the UVC84 USB PTZ Camera, and the UVC86 Dual-Eye intelligent tracking camera.

To maximize efficiency in planning and executing productive remote video conferences, Yealink has loaded the MCore Pro with software to allow native compatibility and worry-free integration into Zoom Rooms ecosystems. Powerful performance is supported by an 11th-generation Intel i5 processor and 8GB of memory. It can simultaneously output video signals through its three HDMI outputs to promote a complete and highly immersive video calling experience. One of these ports can deliver up to 5K video resolutions for ultra-wide feedback. It can be woken up and be ready for use with a single touch of the control panel, and your data is protected by its TPM 2.0 security protocol.

Yealink RoomSensor is a multifunctional room sensor integrated with occupancy, temperature, humidity, and light detection functions. Linking with a Yealink touch panel through Bluetooth adds features such as automatic release, automatic check-in, and more. Passive infrared technology allows more accurate motion detection. Lower power consumption and a replaceable lithium battery provide a maximum of five years of service.

Yealink's third-generation conference touch panel, the MTouch E2 Touch Panel is an enhancement of the MTouch II. It's designed as a multi-function all-in-one device and allows you to easily perform call control, camera control, content sharing, and other functions. The MTouch E2 has a built-in human motion sensor, ensuring that your conference system automatically wakes up and you can immediately start the conference.
