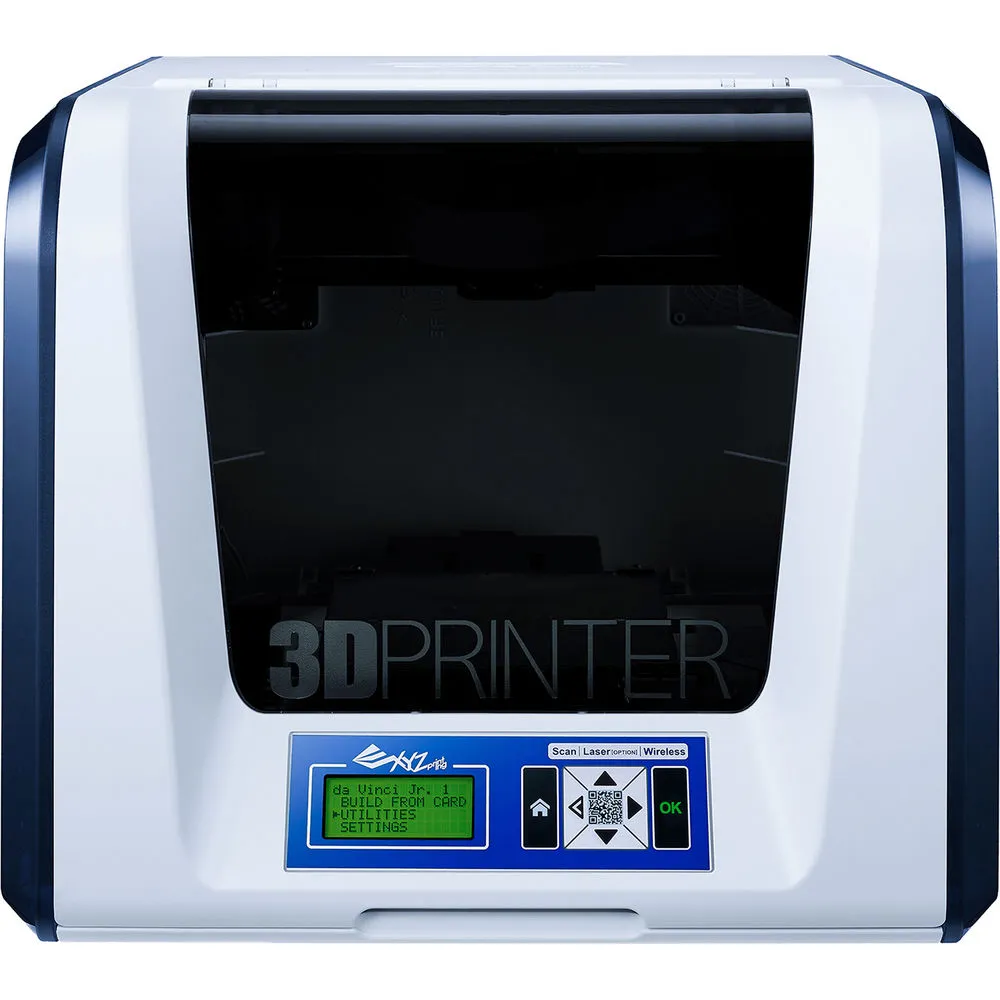

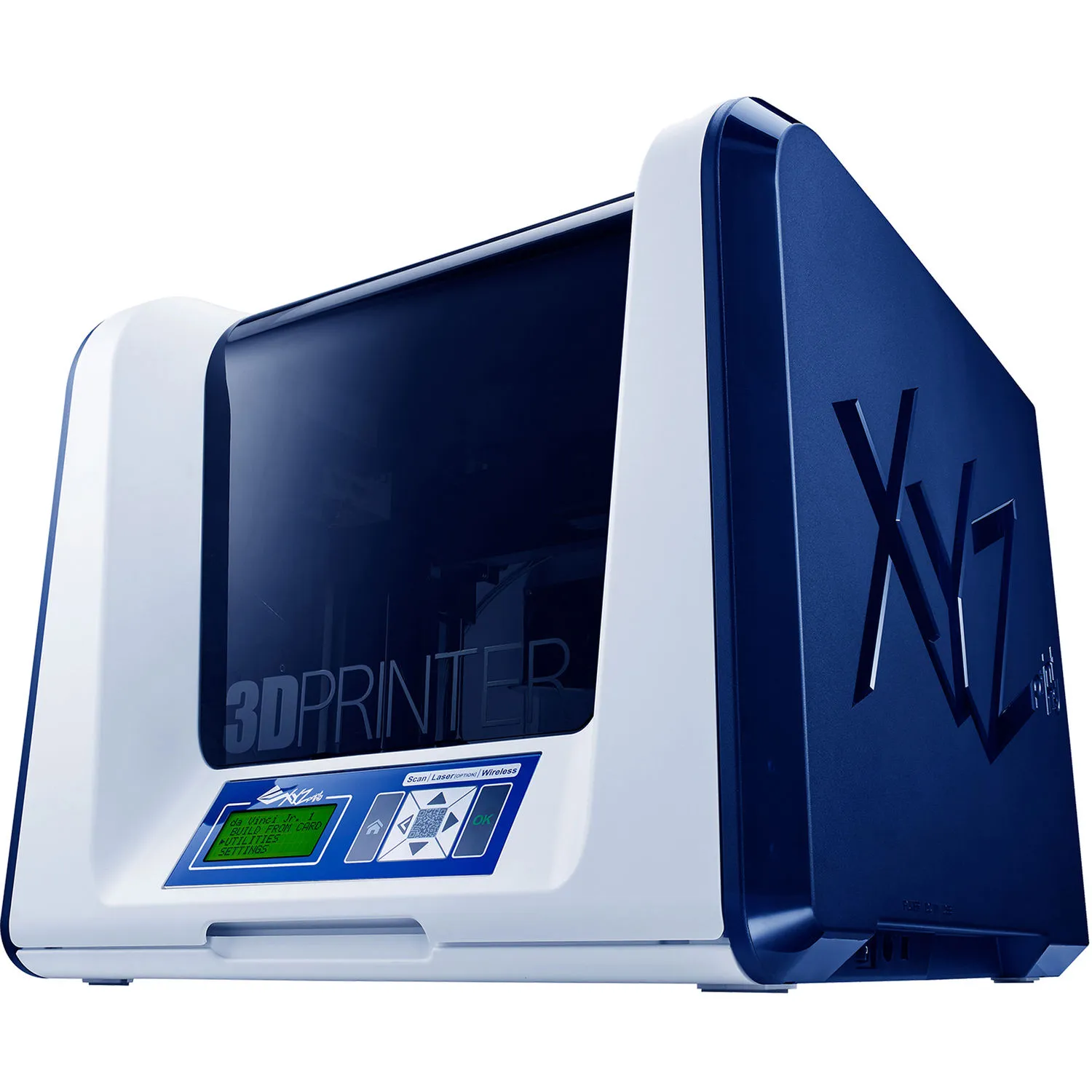

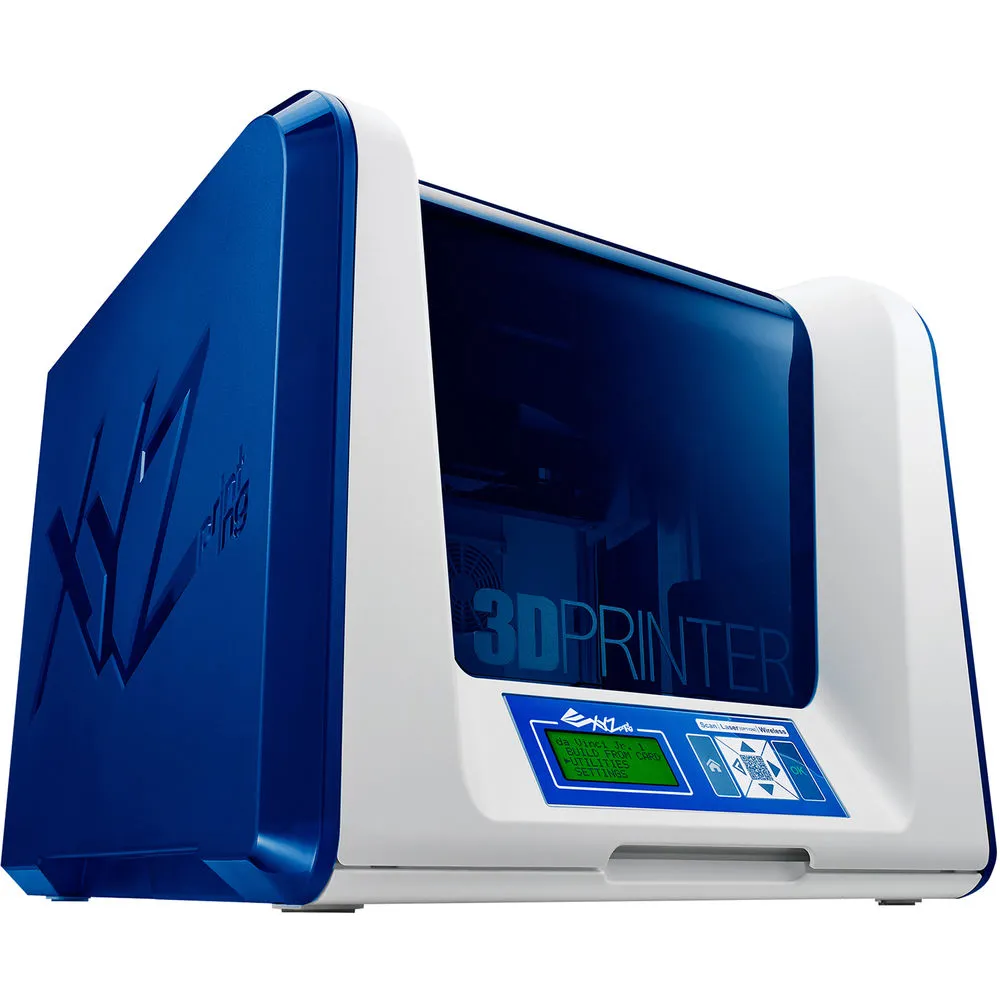

XYZprinting da Vinci Jr. 1.0 3-in-1 3D Printer

With a build volume of 5.9 x 5.9 x 5.9", the da Vinci Jr. 1.0 3-in-1 3D Printer from XYZprinting features a layer resolution of 100-400 microns and is able to utilize 1.75mm PLA filaments via its auto-loading filament system. It is equipped with a 3D scanner, a single extruder nozzle, an enclosed and non-heated print bed, and a 2.6" LCD display. Users may print their compatible STL files or XYZ's proprietary 3W files via wired USB 2.0, 802.11b/g/n Wi-Fi, or SDHC cards up to 32GB in size. Using the XYZgallery app for iOS and Android, users may also print using their mobile devices.

This 3D printer also comes bundled with XYZware, which allows users to design, customize, and print digital 3D models. It can also import STL files and create realistic simulated objects, as well as print out real products. Also bundled is XYZscan software, which is a 3D object scanner assistant that can conduct 3D scans, provide previews of files, and output files into a copy work via XYZware. Additionally, an optional laser engraver add-on allows designs to be etched on materials such as paper, cardboard, leather, wood, and plastic.

The da Vinci Jr. 1.0 3-in-1 3D Printer is hardware-compatible with 32- & 64-bit PCs running Windows 7 and above with at least 4GB of memory, as well as 64-bit Macs running OS X 10.8 and above with at least 4GB of memory. Included is a guide tube, a feeding path cleaning wire, five cleaning wires, a USB cable, three pieces of bed tape, a filament spool axle ring, a scan bed, a cleaning brush, a scraper, an SD card, a power adapter, a power cord, bundled filament, a feeding tube grip, and a calibrating plate.

General Features

Eco-Friendly and Safe Design

The da Vinci Jr. 1.0 3-in-1 uses non-toxic, biodegradable PLA filament only. XYZprinting's PLA is extracted from natural materials such as corn, sugarcane, and other sugar-containing crops and passes several requirements to ensure that it is DEHP-free and heavy metal-free. Users can enjoy 3D printing for themselves and others without worrying about toxic materials. Its enclosed design also provides a safe printing environment for homes, offices, classrooms, or makerspaces

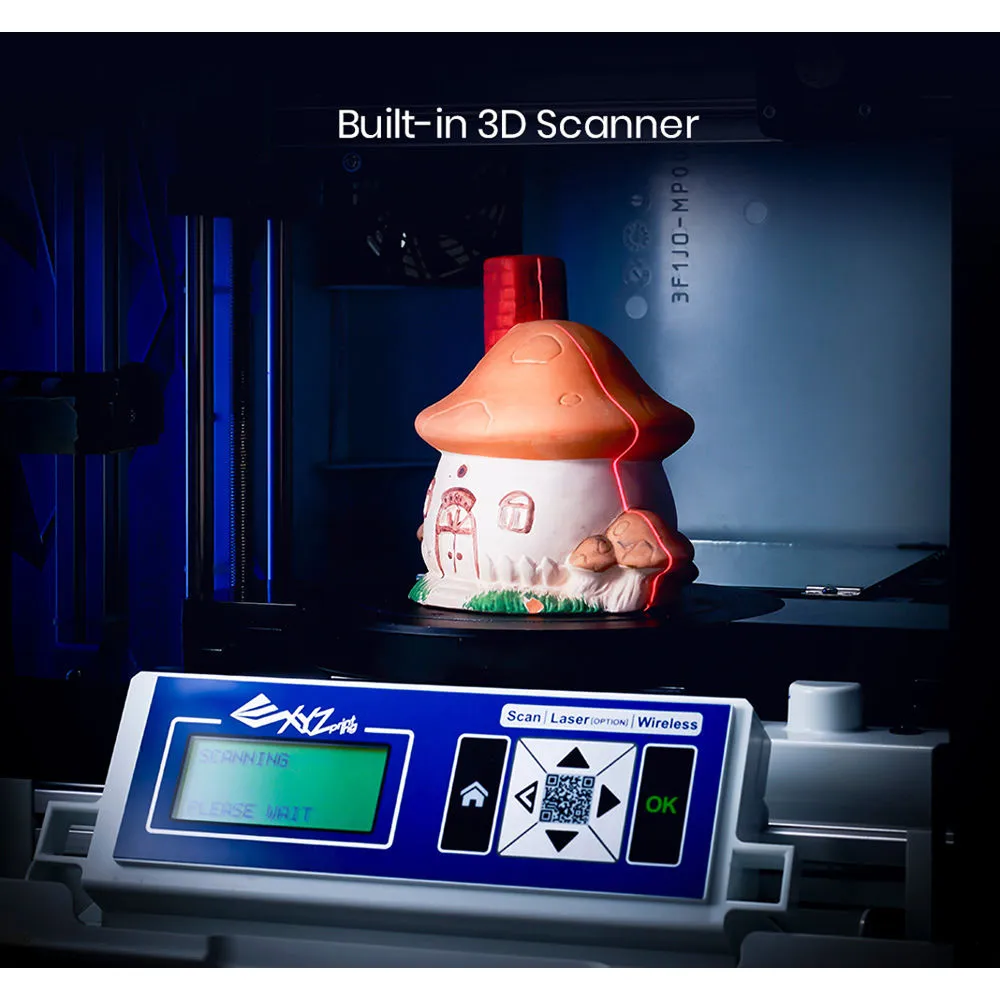

3D Scanning

360° rotating platform for full object scanning

Rapid scanning in around 5 minutes

High-resolution laser module

Scan size: 1.18 x 1.18" to 4.72 x 4.72" / 3 x 3cm to 12 x 12cm

Scan resolution: 0.01" / 0.25mm

3D Printing

Non-heated bed

Press-and-release extruder

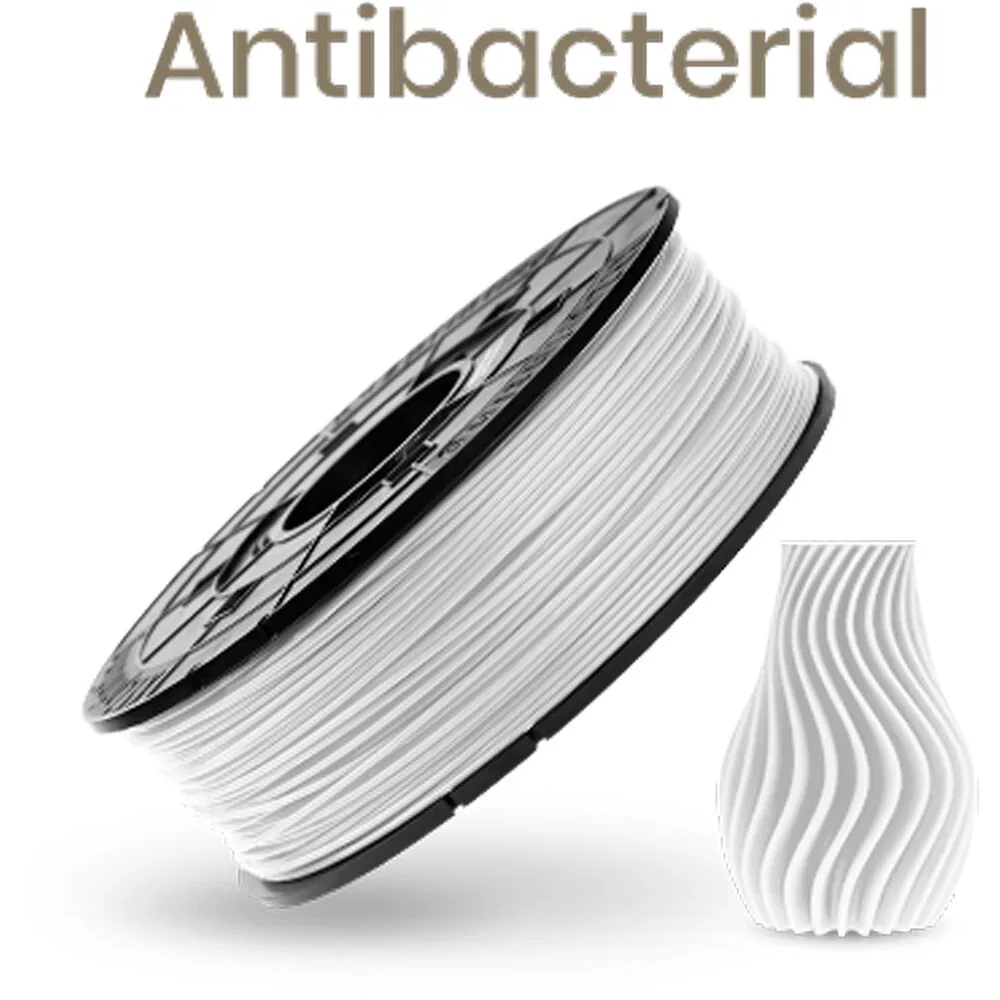

Environmentally-friendly and non-toxic filament (1.75mm PLA)

An optional 0.3mm extruder produces higher resolution and more intricate prints at 50 microns

Auto-Calibration

The da Vinci Jr. 1.0 3-in-1 uses an intuitive 9-point calibration detection system that helps determine that distance between the extruder and the print bed. After it finishes detection, it adjusts the extruder accordingly to ensure you have high quality prints

Wi-Fi Connectivity

Print directly from a computer in your local area network

Use the XYZgallery app to print directly from iOS and Android devices

Built-in SD card slot for convenient printing that supports SDHC cards up to 32GB

XYZmaker

Make your dreams into reality with the free and downloadable version of XYZmaker 3D modeling design software for beginners

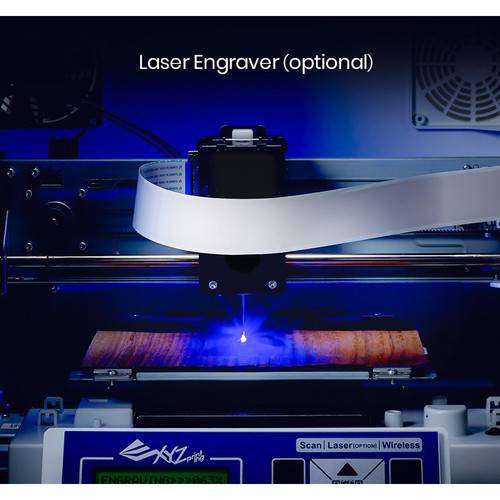

Laser Engraver (Optional)

Engrave your own creative path on various materials such as paper, cardboard, leather, wood, and plastic

Output power: 350mW ±10%
