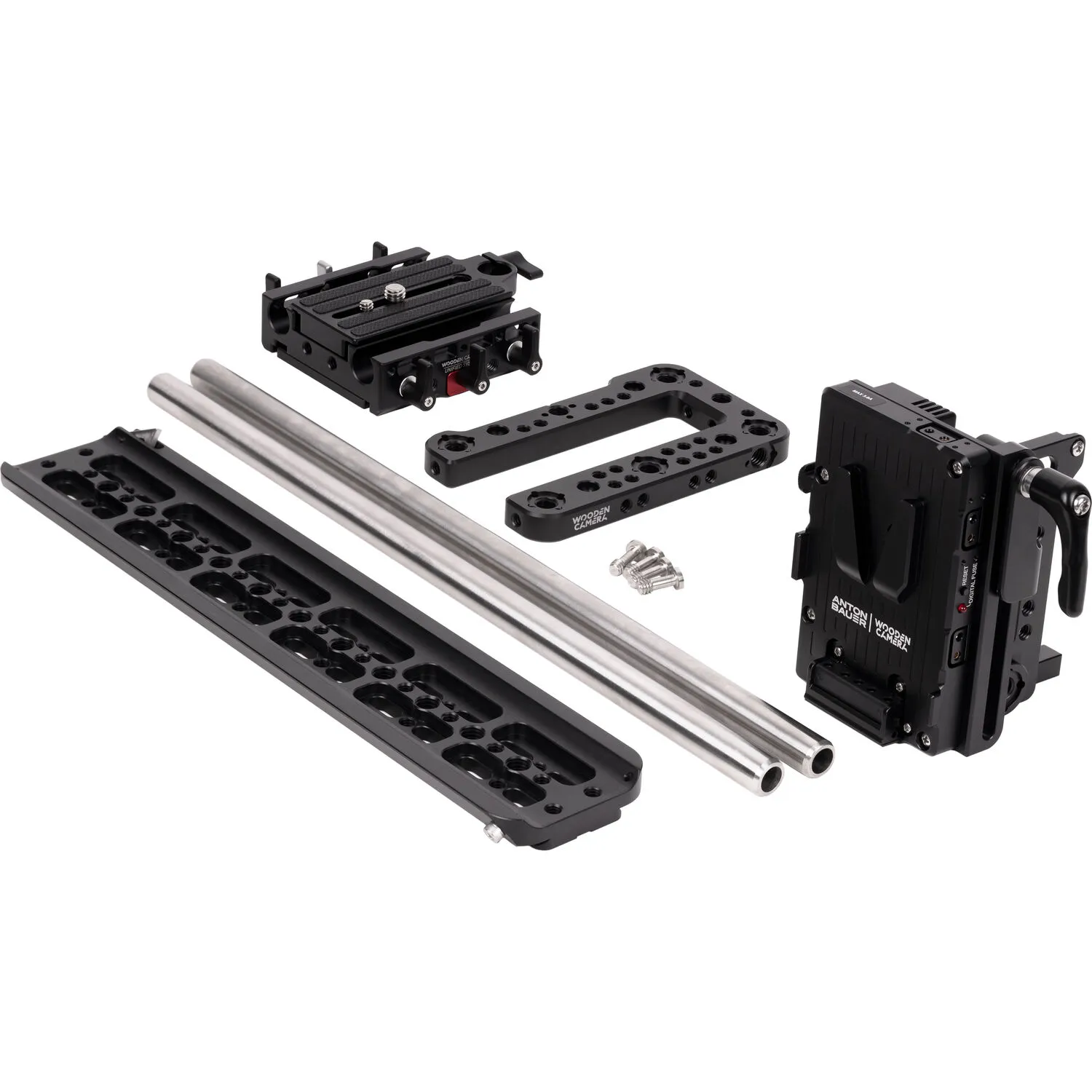

The advanced configuration of Wooden Camera'sSony FX6 Unified Accessory Kit features a camera plate with an Arca-Swiss compatible design that allows you to quickly transfer the camera from the tripod to another support accepting an Arca-Swiss baseplate. An integrated vertical 15mm rod clamp can be used to support an optional lens adapter foot. The dovetail plate can be mounted on a tripod and the included baseplate mounts on that. The kit provides accessory mounting points and includes a baseplate system with a sliding Arca-Swiss baseplate and integrated 15mm LWS rod clamps, a pair of 15" long 15mm rods, a 12" long dovetail plate, and a V-mount battery plate. This system allows you to configure and expand your system as your needs evolve. The top plate attaches to your FX6 camera and provides 1/4"-20 threaded holes, as well as 3/8"-16 threaded holes with ARRI-style anti-twist divots. The baseplate features an ARRI-compatible dovetail slot and a short dovetail plate. It allows you to mount your camera on a variety of tripods and supports and quickly pull the camera off the tripod, leaving behind the rod clamps that support lens accessories, such as follow focus units and matte boxes.

The advanced configuration of Wooden Camera'sSony FX6 Unified Accessory Kit features a camera plate with an Arca-Swiss compatible design that allows you to quickly transfer the camera from the tripod to another support accepting an Arca-Swiss baseplate. An integrated vertical 15mm rod clamp can be used to support an optional lens adapter foot. The dovetail plate can be mounted on a tripod and the included baseplate mounts on that. The kit provides accessory mounting points and includes a baseplate system with a sliding Arca-Swiss baseplate and integrated 15mm LWS rod clamps, a pair of 15" long 15mm rods, a 12" long dovetail plate, and a V-mount battery plate. This system allows you to configure and expand your system as your needs evolve. The top plate attaches to your FX6 camera and provides 1/4"-20 threaded holes, as well as 3/8"-16 threaded holes with ARRI-style anti-twist divots. The baseplate features an ARRI-compatible dovetail slot and a short dovetail plate. It allows you to mount your camera on a variety of tripods and supports and quickly pull the camera off the tripod, leaving behind the rod clamps that support lens accessories, such as follow focus units and matte boxes.

The additional length of the dovetail plate provides greater balance opportunities than the short plate that comes with the baseplate itself. The included Battery Slide Pro V-Mount is an articulating battery plate that mounts directly onto your camera, stepping up your battery's voltage to 19.5 VDC to power your camera, and it has three D-Tap ports for accessories. It allows access to your camera's battery port, so you can use an optional BPU-series battery and hot-swap your V-mount batteries without shutting down your camera.

The Wooden Camera Unified Baseplate supports 15mm LWS rods at the correct lens height, and it offers a vertical 15mm rod port for incorporating the optional Unified Lens Adapter Kit. This Kit allows you to support different lens adapters from Wooden Camera, Metabones, and other brands.

The Baseplate includes the Core Unit, a Lower Quick Dovetail tripod plate on the bottom, and a Dovetail Camera Plate for the Blackmagic URSA Mini and Sony F55/F5. Other Unified Baseplate Dovetail Plates are also supported, allowing for quick swaps with a variety of cameras.

The Baseplate provides two quick release options. You can remove the Dovetail Camera Plate only and leave the Core Unit with your rod pair behind, or you can remove the Core Unit from the Lower Quick Dovetail, in which case you'll have a dovetail on the bottom of the Core Unit that's compatible with any 2060 Dovetail, Safety Dovetail, or Shoulder Rig.

The Dovetail Camera Plate features a long slot along its center that lets you secure it to the camera with multiple screws (included), which can be set up to 2.8" (70mm) apart. It also has a non-slip rubber surface that will prevent the camera from twisting.
