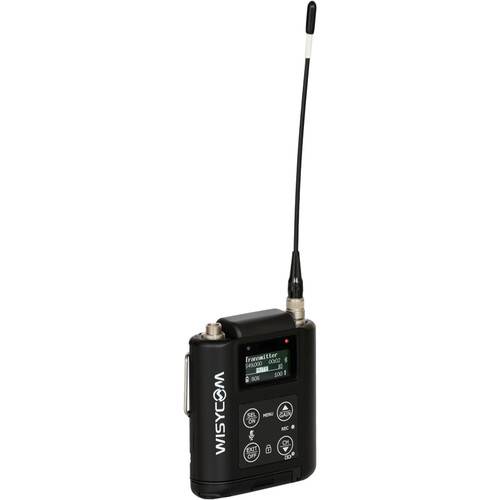

WISYCOM MTP60 Wireless Bodypack Transmitter (470 to 960 MHz)

Designed specifically for pro wireless mic applications, the Wisycom MTP60 is a highly compact, pocket-sized wireless bodypack transmitter featuring three selectable frequency ranges: 470 to 608, 614 to 633, and 940 to 960 MHz. With an incredibly wide tuning range, this transmitter offers extremely high performance in almost any environment.

This version of the MTP60 offers a LEMO 3-pin connector for microphone input. You can monitor or control your transmitter via Bluetooth and the Wisycom BT app. An embedded recorder takes advantage of a microSD card for onboard recording without the need for a receiver. The transmitter provides selectable wide or narrow-band operation, an ENS compander for crystal-clear sound, an integrated low-pass filter for ultrasonic interference, and linear technology that eliminates unwanted intermodulation distortion. The device also provides LTC timecode compatibility. The MTP60 supports power from either two AA batteries or the MPTLBP rechargeable battery (batteries sold separately).

Additional Details

• The multiband transmitter currently has the widest tuning range of any wireless transmitter on the market (470 to 608, 614 to 663, and 940 to 960 MHz)
• Miniature design with flexible PCB (no output connectors) for extended reliability
• Integrated haptic engine for tactice feedback with different vibration patterns
• Enhanced robustness against self interference and antenna performances through an intermodulation cancellation circuit
• Monitor and control with Bluetooth via Wisycom BT App to adjust parameters in real time
• The Bluetooth interface and mobile app allows full control from mobile or tablet
• Bluetooth 5 Long Range with support for the optional MRK16 bridge to allow remote control of MTP60 over hundreds of feet
• Advanced linear technology eliminates intermodulation distortion for more robust signal, extended range, and the ability to operate multiple transmitters in close proximity to each other without needing an intermod frequency plan
• Embedded recorder to record directly to a micro SD card and integrated Linear Time Code decoding
• FPGA-based DSP allows easy switching between wide and narrow band operation
• ENS compander for a totally clear sound
• Integrated low-pass audio filter eliminates ultrasonic interference from devices such as focus pullers
• Front-panel buttons to quickly enter menu thanks to its multiple shortcut combinations
• Dedicated hardware allows accurate real-time position monitoring with advanced user interface
• Max input level of 26 dBu to connect directly to mixers and instruments
• 48V phantom power for wired mics via the optional PHA60 accessory

EAN: 8057803010622
