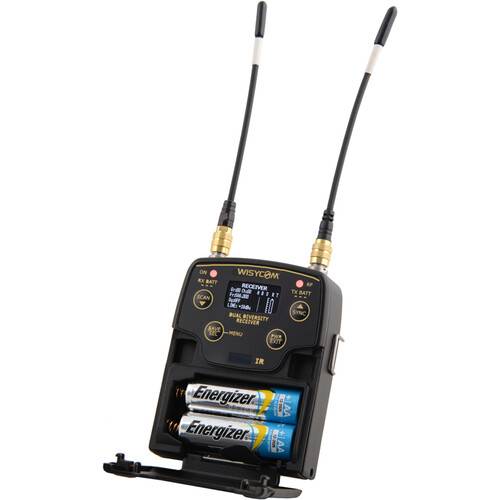

WISYCOM MPR52-ENG 2-Channel Bodypack Receiver (B12: 470 to 960 MHz)

Designed for pro ENG applications, the Wisycom MPR52-ENG is a compact two-channel wireless bodypack receiver sporting analog and digital AES3 output via TAF5. With three selectable frequency bands (470 to 800, 823 to 832, and 920 to 960 MHz), this portable receiver is extremely flexible and capable of high performance in a variety of environments.

Software-selectable DSP-FM operation allows you to choose between narrowband (for increased band efficiency and sensitivity) or wideband. Front-facing control buttons, convenient software control and monitoring via USB, and a high-contrast OLED display make this device easy to operate. Extremely fast spectrum scanning and convenient IR programming enhance the versatility and efficiency of this receiver. Through the computer-based Wisycom Manager 2.0, you can use the MPR52-ENG as a highly portable spectrum scanner. The MPR52-ENG can be powered by either two AA batteries or the MPRLBP battery pack (batteries sold separately).

Additional Details

• Two-channel diversity receiver
• DSP analog and digital audio output (AES3)
• Up to 790 MHz bandwidth
• Next-gen multiband front-end filtering: high Q moving filter in 470 to 960 MHz, saw filter at 940 to 960 MHz
• Wideband and narrowband DSP-FM operation
• Narrowband allows 50% more band efficiency, narrowband allows for 3 dB of extra sensitivity and noise immunity
• Extreme low noise VCO with ultrafast spectrum scan for optimal quick and easy setup
• High-contrast OLED display
• Automatic scan and transmitter programming through infrared
• DSP based for extreme flexibility and multicompanding operations
• Miniature design with integrated battery pack: MPRLBP or 2 x AA batteries
• Operation and charging through micro-USB-B connector
• Monitor and control through USB and Wisycom Manager 2.0 (this transform MPR52 in a quick and low-noise portable spectrum scanner)

EAN: 8057803011551
