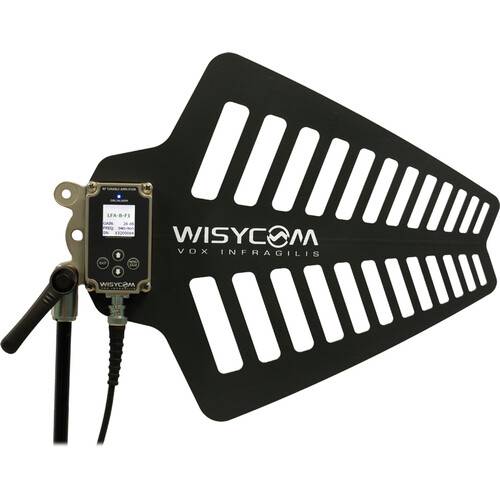

WISYCOM LFA-B-F2 Directional Wideband Active Antenna with Remote-Controlled Filters and BNC Connector (410 to 1300 MHz)

The Wisycom LFA-B-F2 is an ultrawideband active directional antenna that combines a low-noise RF amplifier with a remote-controllable filter bank, ensuring high-quality signal reception and minimizing interference for professionals wireless systems in film, television, live sound, theater, broadcast, and houses of worship. This variant is configured with the F2 filter option and features a BNC connector.

The LFA-B-F2 covers a wide frequency range from 410 to 1300 MHz, making it compatible with a variety of wireless microphone systems. It can be controlled both locally, using the user-friendly interface with a TFT display and navigation buttons, and remotely using the Wisycom Manager software via a data connection over the RF coaxial cable. This remote controllability allows for fast and flexible setup and integration into complex wireless-audio systems.

F2 Filter Option

• Tunable filter for interference control: 430 to 730 MHz (40 MHz-wide)
• Fixed-band saw filter: 940 to 960 MHz (USA)
• 3 high-pass filters (470/520/550 MHz) and 3 low-pass filters (617/663/698 MHz), CASCADE 9 bandpass combinations (USA/EU)

At a Glance

• Directional antenna
• BNC connector
• Wide reception band: 410 to 1300 MHz
• RF gain from -12 to +27 dBu (1-dB step)
• Remote controllable filters via Wisycom manager network—through data link running on coaxial cable (with MAT244/MAT288/SPL2208/SPL2216)
• Local configuration through TFT display and four key navigation buttons
• Antenna off for RF zone disabling
• Skeletal design for low wind loading
• Waterproof with gasket sealing
• Easy installation: the antenna can be easily mounted on a standard microphone stands or clamps using its 5/8" mounting thread or the included or 3/8" adapter

EAN: 8057803010288
