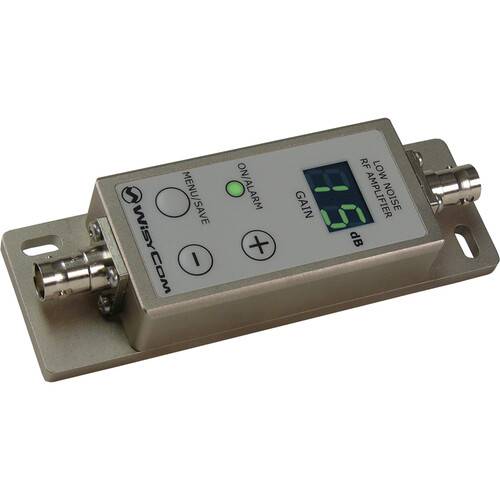

WISYCOM BAA Wideband Antenna Amplifier with BNC Connectors (470 to 960 MHz)

The Wisycom BAA is a wideband antenna amplifier with BNC connectors, designed to enhance RF gain by up to 16 dB thanks to its exceptionally high OIP3 of 43 dBm. This allows for the use of long coaxial cables with wireless receiver systems operating in the 470 to 960 MHz range.

Powered via 12 VDC/100mA through the coaxial cable connected to its output, the BAA draws power directly from the receiver system, eliminating the need for an external power source. Its rugged aluminum housing ensures durability for outdoor installations, while two M4 screw holes enable secure wall mounting.

At a Glance

• Broadband operations: 470 to 960 MHz
• Very high linearity (OIP3 > 40 dBm)
• Up to 16 dB gain, settable in 1-dB steps
• Powered by the receiver system through coax cable, requires +12 VDC/100mA
• Power feedthrough selectable for cascade operation of several BAAs
• 3-button navigation and LED display
• Rugged aluminum, waterproof sealing
• Two holes for wall installation

EAN: 8057803010424
