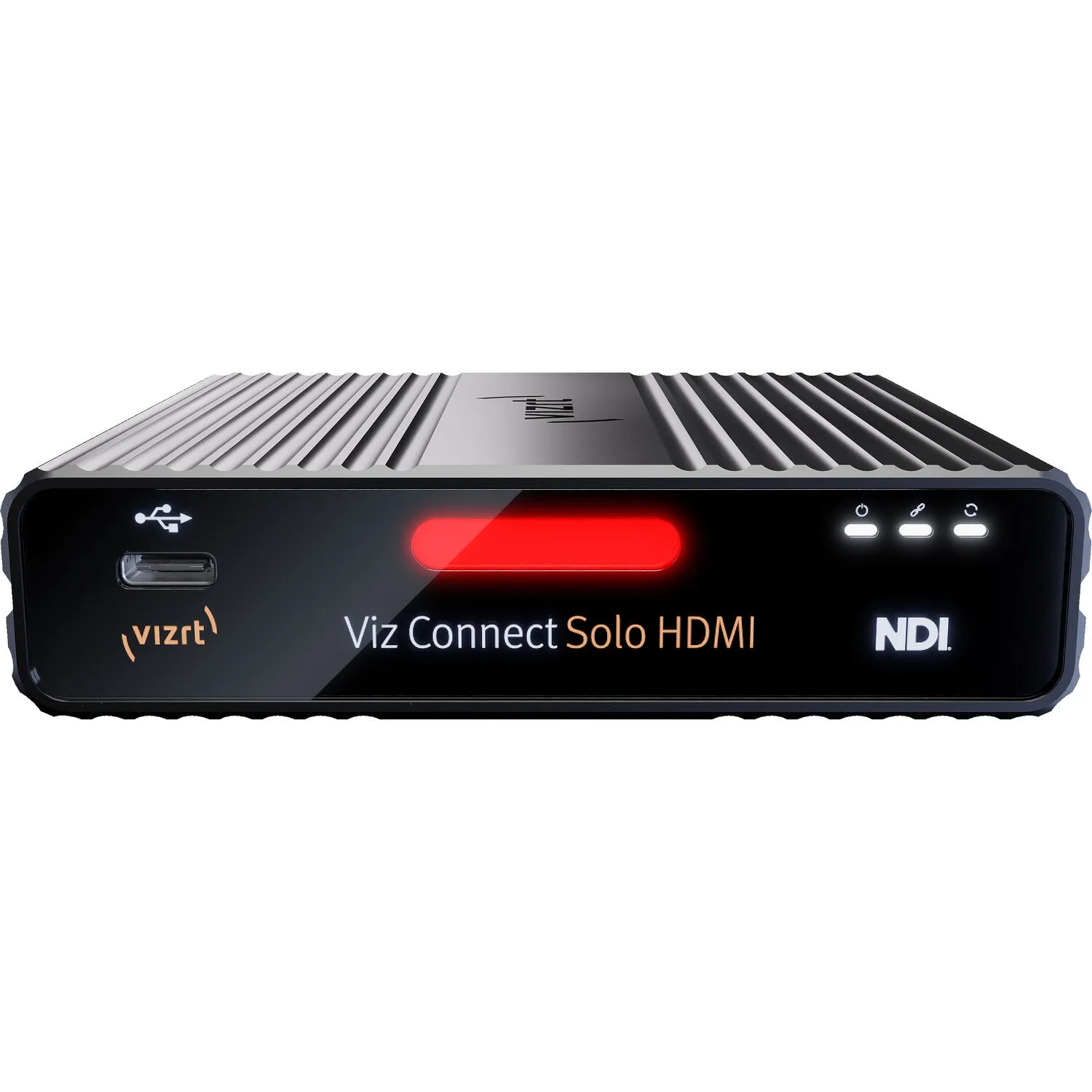

Vizrt Viz Connect Solo HDMI

Bidirectional HDMI to NDI Converter

Convert 4K video to and from NDI and HDMI sources and destinations using the Viz Connect Solo HDMI from Vizrt. It supports up to UHD 4K60 video input and output from HDMI to NDI and from NDI to HDMI. Use this ultracompact converter to connect your camera, webcam, or computer for live streaming via Ethernet. A web-based user interface enables you to configure and monitor your output.

Note that this converter is not compatible with NDI|HX streams.

Power and Features

• Power this converter using PoE (Power-over-Ethernet) or an external power supply.
• Ultra-portable form is easy to mount.
• Front display, Program, and Preview tally LED lights.
• NDI virtual input, multicast mode, and NDI transfer modes.

Audio Encoding and Decoding

The Viz Connect Solo HDMI's audio features include a 3.5mm mono microphone audio input for embedding as well as a 3.5mm line-level output for de-embedding audio. The HDMI signal supports 4-channel audio encoding and 2-channel audio decoding.

Web-Base User Interface

The Viz Connect Solo HDMI is controlled via a web-based user interface for configuration and monitoring. The Solo also features a 3.5mm analog line-level stereo audio input for embedding as well as a 3.5mm analog line-level stereo output for de-embedding audio.
