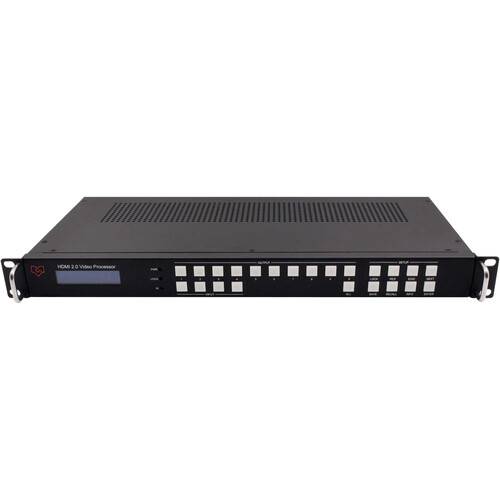

VigilLink 4x16 HDMI 2.0 Seamless Matrix with 4-Screen Multiview

The 4x16 HDMI 2.0 Seamless Matrix with 4-Screen Multiview from VigilLink is a high-performance switcher designed for LCD and LED video wall management with comprehensive video wall splicing. It is equipped with four HDMI inputs and 16 HDMI outputs and supports HDMI 2.0 with an 18 Gb/s video bandwidth and resolutions up to DCI 4K60. The HDCP 2.2-compliant device also supports 180° rotation and up to four windows on all outputs.

• HDCP 2.2 compliant for secure content protection
• 18 Gb/s video bandwidth supporting HDMI 2.0 specifications
• Seamless switching between different input sources with zero interruption
• Maximum resolution support: 4096 x 2160 at 60 fps

• Comprehensive video wall splicing with bezel compensation
• Multiview functionality with up to four windows on all outputs
• Two synchronization modes for all output ports: General Synchronization and Sync Delay
• 180° rotation support for versatile mounting configurations

• Auto and User-Defined output resolution modes
• Optimized configuration for LED wall displays
• Standalone output displays and video wall configurations are supported

• Integrated breakaway audio extractor and switcher
• Complete audio/video signal management solution

• Front panel button controls
• IR remote control
• RS-232 serial communication
• Network control via LAN
• Web-based GUI for comprehensive remote management
