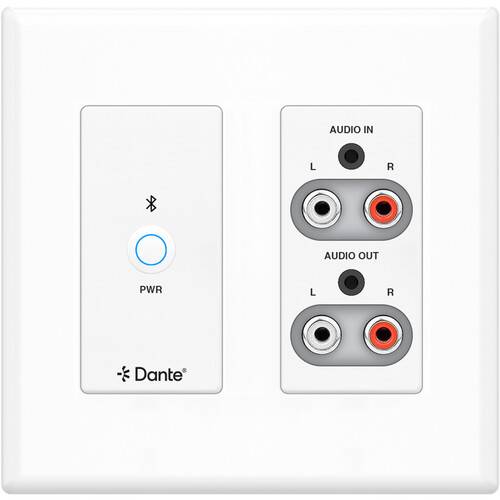

VigilLink 2x2-Channel Bluetooth, Analog RCA, and 3.5mm to Dante Converter Wall Plate

The VigilLink 2x2-Channel Dante Converter Wall Plate allows switching between Bluetooth, RCA, or 3.5mm audio inputs and converting that audio for distribution via Dante network. Supporting Dante sample rates up to 96 kHz and AES67 RTP audio transport, this interface delivers professional-grade audio over IP with configurable latency for precise synchronization.

This wall plate interface features Bluetooth 5.0 stereo in and out, with pairing of up to two devices at once. It supports volume control, track control, and displays album information.

Connect line level audio devices via stereo RCA or 3.5mm input and output connections. Two-way audio conversion is supported with RCA and 3.5mm outputs available simultaneously. Input sensitivity and output gain are adjustable via web GUI to meet any environment's demands.

• Adjustable analog input sensitivity: +24, +4, 0, - 10, -28 dBV
• Adjustable output gain: +18, +4, 0, -10 dBV

• Dante sample rates: 44.1, 48, 88.2, 96 kHz at 16, 24, 32-bit
• Configurable Dante device latency (supports 2, 5, or 10 ms configurable using Dante Controller)
• Configurable Bluetooth naming allows for simple discovery of the device
• Features Class 0 IEEE 802.3af PoE for powering of product from any PoE switch
• Power via local 12 VDC adapter (not included) for when network switch does not support PoE
• Front-panel button, TCP/IP, and web GUI control
