Vaddio RoboSHOT 20 UHD OneLINK Bridge Express System (White)

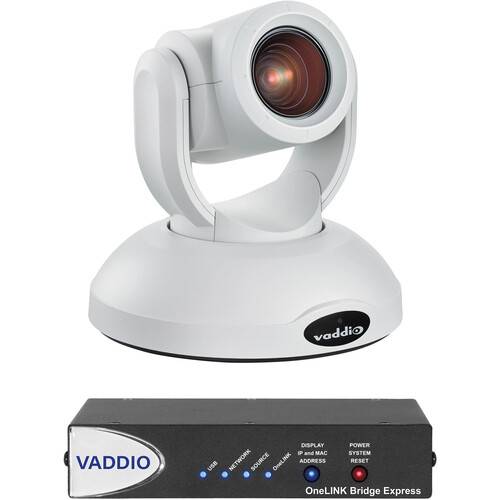

The RoboSHOT 20 UHD OneLINK Bridge Express System from Vaddio combines a white RoboSHOT 20 UHD PTZ camera and OneLINK Bridge Express interface. It is suitable for use in distance learning and corporate environments. The system captures 3840 x 2160 video at 30p from a single 1/2.3" type Exmor sensor and transmits it up to 328' over Cat 5e/6 cable. The combination enables powering the camera, sending control signals, and transmitting video over a single Ethernet cable.

The PTZ camera features a 20x total zoom range with 74° angle of view at wide, with a 4.8° angle of view at maximum zoom in. The OneLINK Bridge Express features HDMI, USB 3.0, and IP video outputs, audio inputs and outputs, and accepts HDBaseT input as well as RS-232 and Ethernet.

This white RoboSHOT 20 UHD Ultra High-Definition PTZ Camera from Vaddio is suitable for use in distance learning, corporate, and house of worship. It captures UHD 4K (3840 x 2160) at 30p from a single 1/2.3" type Exmor R sensor. Featuring a 12x optical zoom, with a 1.67x digital zoom for a 20x total zoom range, the camera has a 74° angle of view at wide, with a 4.8° angle of view when zoomed in all the way.

The camera simultaneously outputs HDMI, HDBaseT, 3G-SDI, and IP streaming, so there is no concern about selecting an output port. You can control the camera from a networked computer via the Ethernet port, and an included IR remote provides local control. You can tell at a glance the status of the unit thanks to a built-in LED that changes color to indicate the state of the camera.

The camera's outputs are active at all times, so there is no need to select one output over another. This also allows you to output to more than one display device or recorder at the same time. The built-in IP streaming simplifies streaming your video over a network.

HDBaseT provides power over an Ethernet cable, so you are not limited where you can mount the camera by needing an AC outlet. You can mount this camera wherever you can run an Ethernet cable. Please note that you will need a network that supports HDBaseT to take advantage of this feature.

Connect your PTZ camera and analog audio source to a streaming application with the OneLINK Bridge Express from Vaddio. The bridge makes it easy to input PTZ camera video via HDBaseT and output up to 1080p60 video to a USB Type-B port. It can also output video via an HDMI port for monitoring. It also features audio mic/line input and output terminal blocks to input and output balanced analog audio.

The bridge can be used for video conferencing and IP meeting applications in an easy-to-use package. The bridge is powered using its included power adapter and it can input and deliver video over Cat 6 cable over 328' away. It can be controlled via RS-232, telnet, or IP.
