UPRtek UV100N Spectral UV Meter

The Fotohaus Klinger Light Meter Buying Guide Read More

Designed for industrial, medical, and research applications, the UPRtek UV100N Spectral UV Meter delivers ultraviolet light measurements with lab-grade accuracy in a portable handheld format. Covering a wavelength range of 250 to 400nm, it evaluates UVA, UVB, and UVC emissions with a spectral bandwidth approximately 1nm, far exceeding the precision of traditional filter-based UV meters. Its CMOS linear image sensor provides reproducible measurements within ±0.8nm, ensuring reliable results for applications like wafer processing, polymer curing, and medical sterilization.

Engineered for versatility, the UV100N employs a single multi-wavelength probe that eliminates the need for multiple sensors, while its slim profile allows access to confined or angled positions. It displays a spectral graph for visual confirmation of UV light characteristics, as well as numerical data for easy troubleshooting. Measurements and spectral data are saved directly to the included microSD card in Excel-compatible formats for analysis, reporting, or quality control. Portable and precise the UV100N is an indispensable tool for industries demanding uncompromising UV measurement accuracy

Precise Measurement

• Measures UVA, UVB, and UVC peak wavelength and peak wavelength value
• Measures integration time, spectral irradiance, and joules
• Spectral wavelength range of 250 to 400nm
• Spectral bandwidth accuracy of approximately 1nm

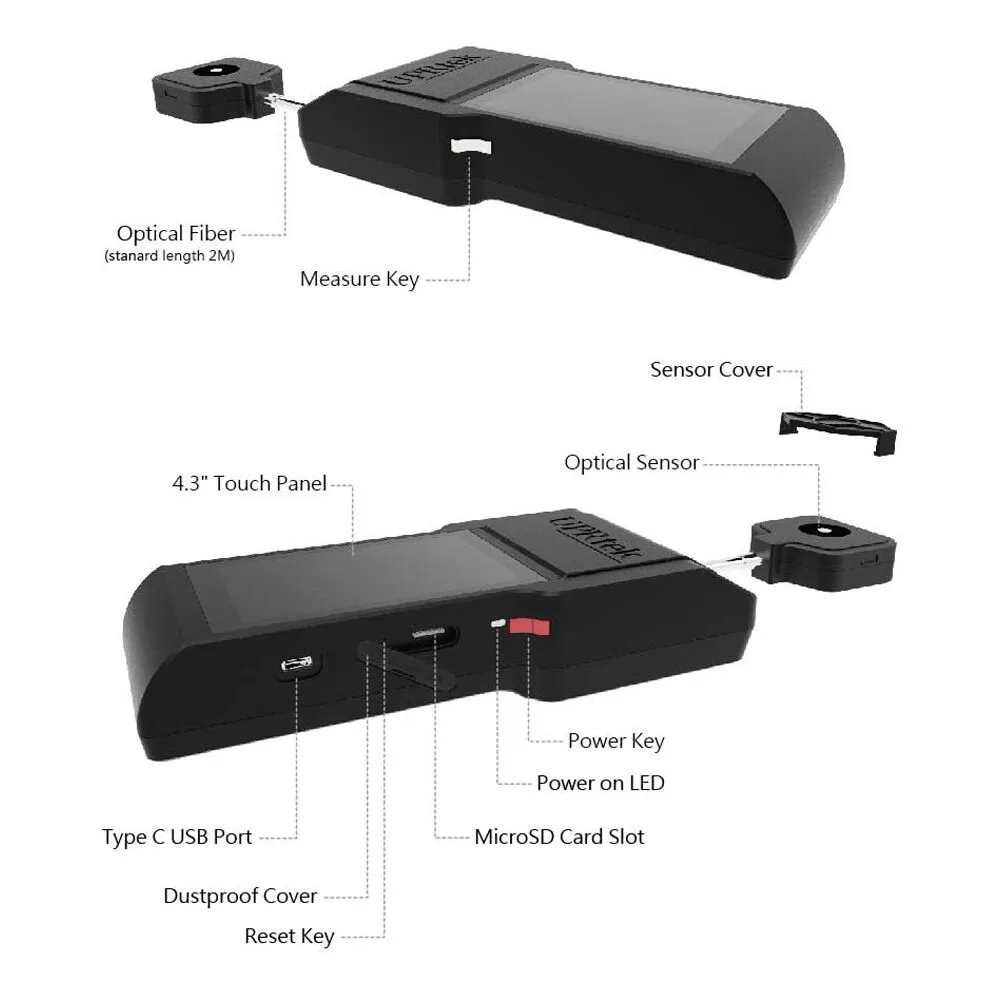

Advanced Design

• CMOS linear image sensor with incident light metering
• Single probe measures multiple ultraviolet wavelengths
• Slim sensor head works in confined or angled spaces
• Integrated dustproof microSD card cover

Intelligent Functions

• Spectral graph visualization with numerical data correlation
• Multiple measurement modes (basic, spectrum, logging, browser, option)
• Auto and manual integration modes with dark calibration
• Diffraction grating separates constituent UV wavelengths

Connectivity and Interface

• 4.3" color capacitive touchscreen LCD with 800 x 480 resolution
• Data export via microSD card in Excel-compatible formats
• USB-C connection for PC integration and power input
• 3200mAh rechargeable lithium-ion battery for up to 3 hours of runtime

UPC: 860014356827
