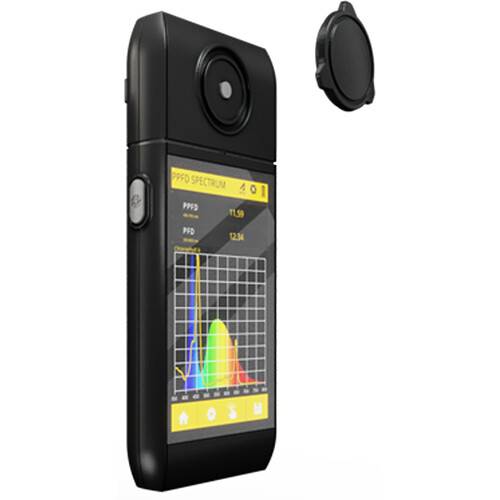

UPRtek PG200N Spectral PAR Meter

The UPRtek PG200N Spectral PAR Meter delivers precise measurements of light quality and intensity for controlled agriculture and research applications. Covering a spectral wavelength range of 350 to 800nm, the meter uses its CMOS sensor to measure PAR, PPFD, and PFD values alongside conventional metrics such as illuminance and correlated color temperature. Its data analytics comply with JIS and DIN standards, ensuring accurate, repeatable results. With a measuring range from 70 to 1,500,000 lux, the PG200N captures data across conditions from low-level grow lights to high-output horticultural arrays.

Engineered for practical deployment in demanding environments, the PG200N features a detachable IP66-rated sensor head, stabilized with a built-in G-sensor to prevent rotational drift during capture. Comparative spectral analysis tools allow users to evaluate multiple light sources simultaneously, while customizable wavelength ranges support crop-specific light classification. Compact and durable with an expansive feature set, the PG200N is a versatile instrument for tailoring light to plant-specific needs.

• Measures PAR, PPFD, PFD, CCT, and illuminance
• Spectral wavelength range of 350 to 800nm
• Illuminance measuring range of 70 to 1,500,000 lux
• Complies with JIS and DIN data measurement standards

• CMOS receptor with incident light metering

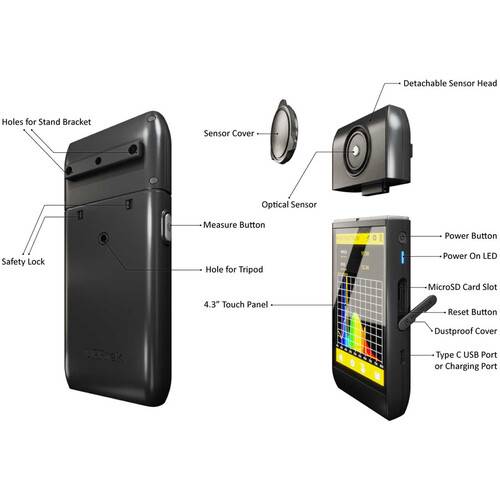

• Detachable sensor head with included control cable extension
• Built-in G-sensor minimizes capture errors from rotation or tilt
• IP66-rated sensor housing resists water and dust intrusion

• Multitude of flexible modes for different scenarios
• Comparative spectral tools for side-by-side light source analysis
• Seasonal and diurnal light monitoring functions
• Customizable wavelength ranges for plant-specific evaluation

• 4.3" color capacitive touchscreen LCD with 800 x 480 resolution
• Built-in Bluetooth connectivity for remote operation and data transfer
• USB-C connection for PC integration and power input
• Data exports in Excel and JPG formats via microSD or USB
