Toa Electronics Plug-In Type VCA Module for Use with 900 Series / BG-2000 Series Amps

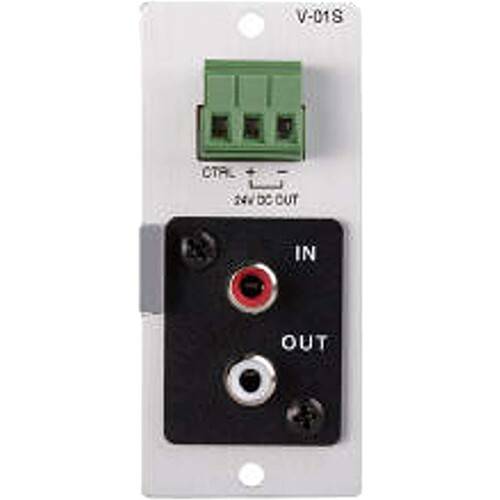

Designed for use with TOA's 900 Series and BG-2000 Series amplifiers, the Toa Electronics V-01S is a plug-in type VCA module that's equipped with a 3-pin terminal block with a 24 VDC output that supplies power to an external controller and a control input. The gain between Input and Output is set within the range of -100 to 0 dB referenced to the 0 - 10V control voltage.

• Voltage Controlled Amplifier (VCA) for applications requiring preset remote master volume control
• Line input and output connect to host amplifier’s pre-amp output and power amp input
• 24 VDC output and control input interfaces directly to RDL RLC3 remote level control
• RCA and phoenix-style connectors
• For 10k potentiometer volume control, use optional U-21S
