The two-input SDI to QAM Modulator and IPTV Streaming Encoder from Thor bundles a real-time HD hardware encoder with a managed program stream multiplexer and RF QAM modulator. It can encode two channels of HD-SDI video…
Product highlights and buying context

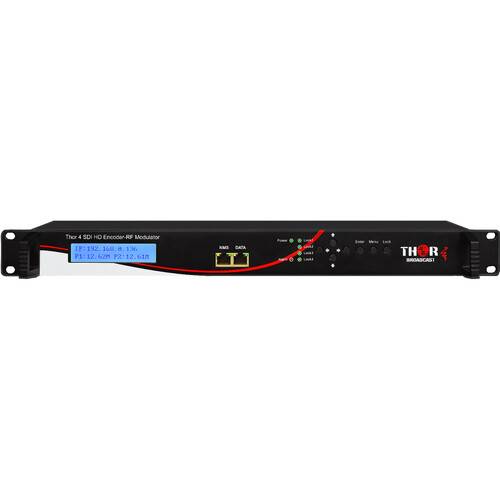

The two-input SDI to QAM Modulator and IPTV Streaming Encoder from Thor bundles a real-time HD hardware encoder with a managed program stream multiplexer and RF QAM modulator. It can encode two channels of HD-SDI video to MPEG-2 or H.264, and modulate the programs on QAM carrier outputs. The unit can also modulate programs encoded externally via an ASI input. This platform is suitable for corporate MATV systems or in-house HD video distribution from SDI sources.
Quadrant Amplitude Modulation (QAM) is commonly used in cable TV systems due to its high bandwidth. The QAM-IP chassis supports all three primary J.83 QAM standards; ITU-T J.83A, J.83B, and J.83C. Any QAM-IP chassis can be set to output RF carriers under either of these three standards without the need to change firmware. The encoder modules are independent of the modulator chassis system.
The HD-SDI uncompressed digital video is commonly used in broadcasting and professional A/V systems. Serial digital video can be carried over single-conductor coax cables employing common BNC connectors. The low-latency encoding reduces the time delay between video input and encoded program output.
