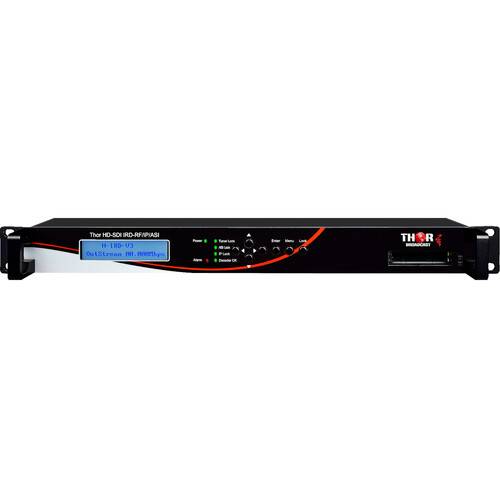

Thor H-IRD-V3s Fiber Integrated Receiver Decoder System for DVB-S2 / ASI / IP

The V3 platform adds a front panel LCD video display for monitoring, as well as an internal program multiplexer for combining content from both ASI and IP sources simultaneously. The web interface displays all available programs and corresponding PID's, where each program can be independently added to either the ASI or IP outputs, and all selected programs are multiplexed into a single MPTS output. Additionally, the IP output can be configured for up to 32 SPTS single program stream outputs, each with different address and port settings. This allows the V3 system to be used as an intelligent ASI to IP, or RF to IP Gateway with add-drop and ASI multiplexing capabilities. The combined multi-program transport streams carried over IP can also be separated into their corresponding single program streams. You can configure the RF tuner for QAM, 8VSB (ATSC), DVB-T, DVB-C, or DVB-S2 signal sources.
