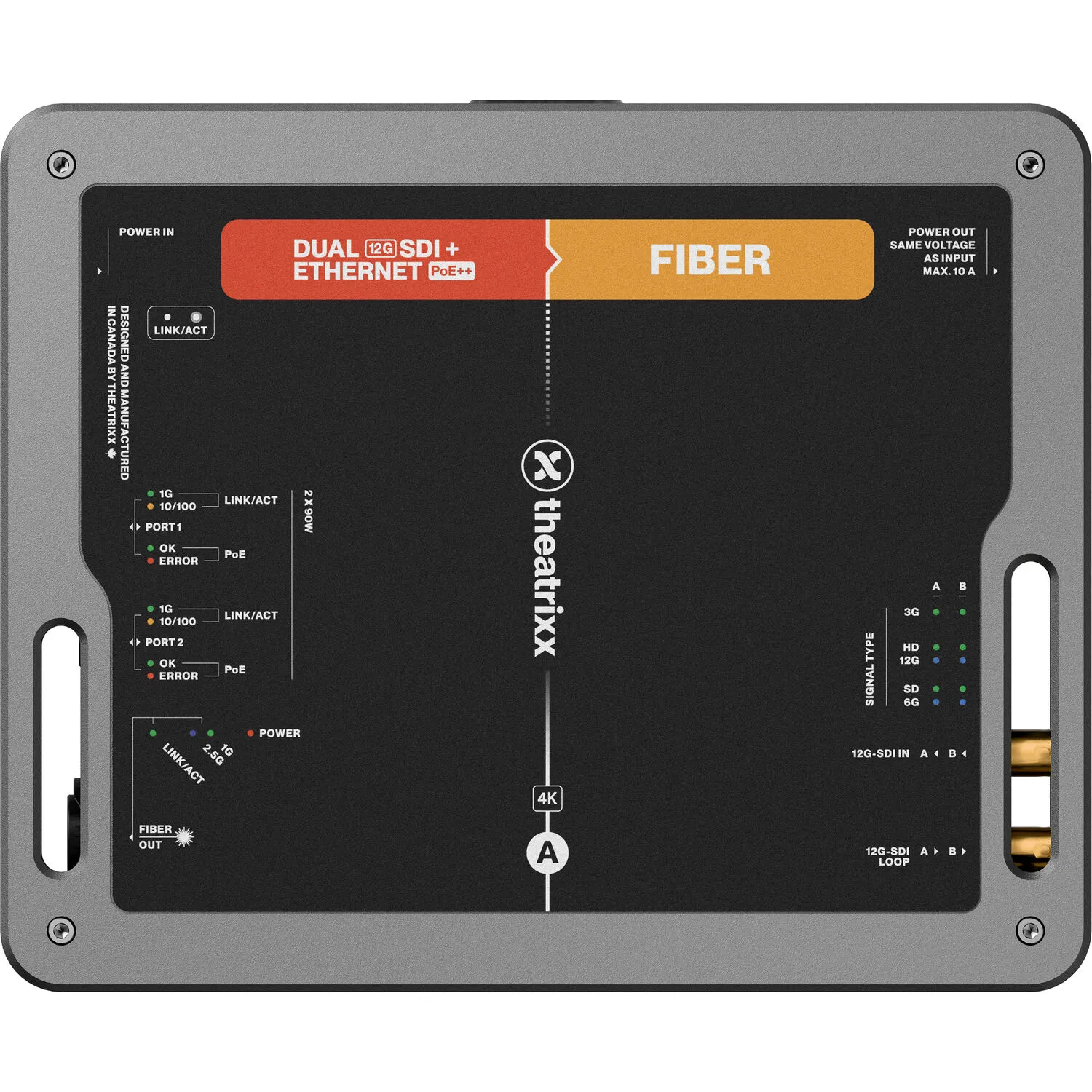

Theatrixx Technologies Dual 12G-SDI + Ethernet PoE++ to Single-Mode OpticalCON Quad Fiber Converter

The Dual 12G-SDI + Ethernet PoE++ to Single-Mode OpticalCON Quad Fiber Converter from Theatrixx Technologies is a sturdy, compact plug-and-play converter that offers dual 12G-SDI input to a single-mode opticalCON quad SFP fiber output module for video conversion over long-distances. This model also includes two Gigabit etherCON Ethernet ports with PoE++ and reclocked, amplified dual loop-through 12G-SDI outputs.

The integrated power supply features a locking powerCON True1 connector and a built-in standard AC outlet to power a nearby projector, TV, or laptop. There is also a loop-through powerCON True1 output to daisy-chain your modules or power a local TV, computer, or projector.

Additional Details

• Locking dual etherCON connectors for Gigabit Ethernet connection with PoE++
• Integrated power supply with locking powerCON True1 connector
• Built-in convenience powerCON True1 output to power nearby projector, TV, or laptop
• Magnetic stacking system and non-skid rubber pad for tabletop application
• Multiple mounting options include C-clamp, wall-mount adapter, LCD mount adapter, and belt adapter
• Rugged, tour-ready, aesthetically pleasing enclosure
• Plug-and-play operation; No dip switches, buttons, or menus to fumble with
• Clear status LED indicators for quick troubleshooting
• Field identification with unique color and alphabetic coding system
• SFP-based video transmission for interoperability with standard SDI over fiber devices
• Reclocked and amplified 12G-SDI loop outputs
