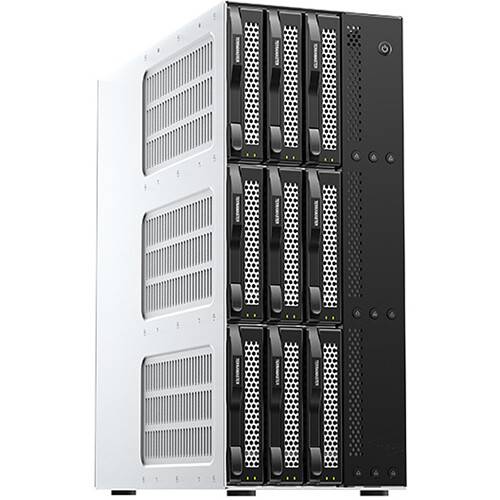

TerraMaster D9-320 9-Bay USB 3.2 Gen 2 Hard Drive Enclosure

Designed for multimedia storage and cold storage expansion, the D9-320 9-Bay USB 3.2 Gen 2 Hard Drive Enclosure from TerraMaster is a high-speed multi-drive storage solution that was engineered to meet the demands of professional studios, enterprise-level servers, surveillance systems, and personal media enthusiasts. Built with nine SATA drive bays that can handle 2.5 or 3.5" hard drives and SSDs, the D9-320 delivers read speeds of up to 1016 MB/s and write speeds of up to 960 MB/s when equipped with nine SSDs. Fully compatible with Windows, Mac, Linux, Kylin V10 SP1, UOS, Unraid, TrueNAS, and Proxmox systems, the D9-320 uses a 10 Gb/s USB-C 3.2 Gen 2 port that is compatible with USB 3.2 Gen 1, Thunderbolt 3, or Thunderbolt 4.

Multiple D9-320 hard drive enclosures can be daisy-chained via a high-speed 10 Gb/s USB host expansion port located in the rear of the device for further capacity expansion.

Nine independent drive power switches and a master power switch allow users to individually power down unused drives, saving energy and significantly extending the lifespan of the hard drives. The D9-320 also automatically ejects drives safely from the computer during the process of turning off the hard drive power. This ensures drive heads are parked properly before cutting power, eliminating the risk of head damage from sudden power loss during high-speed operation.

The device is equipped with a power-on recovery memory function. After normal shutdown, the device remains off upon power restoration. After abnormal power loss, it automatically restarts when power resumes, enabling automated unattended management with servers, NAS, and other devices.

The D9-320 automatically enters sleep mode when the computer system goes into standby, reducing drive operating time, minimizing motor wear, and extending drive lifespan, ensuring reliable protection for your storage assets.

Equipped with an intelligent temperature-controlled fan system, the D9-320 delivers efficient cooling while maintaining ultra-quiet operation, extending the lifespan of both the device and the hard drives. Four internal temperature sensors maintain optimal drive temperatures through precise thermal monitoring and adaptive fan speed adjustment.

Constructed with a robust unibody metal design, it guarantees long-term stability and reliability, perfectly suited for high-intensity operational environments.

Make scheduled backups of your data with the user-friendly TPC Backupper software. After connecting your device to your computer and installing the client, you can set up tasks to back up folders and disk partitions from your compatible Windows PC to TerraMaster USB devices or NAS storage servers. Compatible with Windows 8, 8.1, 10, and 11 systems, this software supports incremental and differential backup strategies, providing reliable protection to your data.

EAN: 6939236146944
