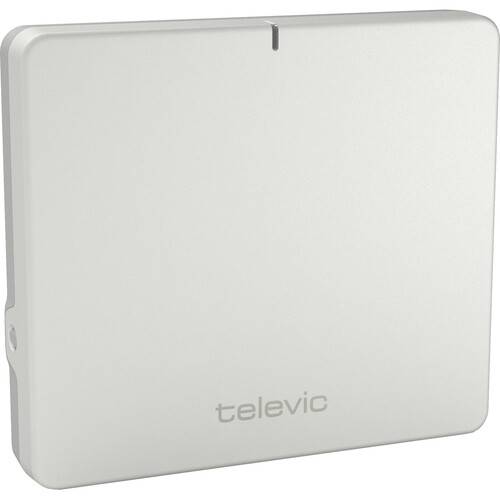

TELEVIC Unite AP4 4-Channel DECT Access Point (NA: 1920 to 1930 MHz)

The Televic Unite AP4 is a multifunctional wireless access point designed for professional-audio distribution across applications such as interpreting, assistive listening, and wireless microphone systems. With support for up to four simultaneous audio channels per unit and synchronization of up to eight AP4s per network, it provides a scalable, reliable foundation for complex installations requiring up to 32 channels of clear, interference-free DECT audio transmission.

The Unite AP4 operates as either a transmitter in Broadcast Mode or a receiver in Full Duplex Mode, allowing flexible system configurations. In transmitter mode, it delivers audio from external sources over four DECT channels for seamless integration with interpreting systems, assistive listening setups, and wireless mic applications. Multiple AP4 units can operate in mixed modes within the same network to handle diverse requirements simultaneously. This version of the AP4 is configured for North America and operates in the 1920 to 1930 MHz DECT spectrum.

Equipped with a built-in Dante audio interface, the AP4 seamlessly integrates into Dante networks at 48 kHz. It supports up to two Dante flows, each containing one to four channels, and is easily configured using the free Audinate Dante Controller. The AP4 also offers four analog inputs and outputs on Phoenix connectors and an Ethernet port for network connectivity and Power over Ethernet (PoE) operation.

Using Televic's free Unite Manager PC software, users can configure, monitor, and maintain one or more AP4 devices. The software provides comprehensive tools for pairing and setup of transmitters, receivers, chargers, and other Unite network components, ensuring streamlined system administration and maximum reliability in professional environments.

The AP4 includes a removable mounting plate for wall, ceiling, tripod, or VESA adapter installation, along with a universal power supply and accessories for versatile deployment. Power is provided via PoE or the included 36W power adapter for easy integration into a wide range of environments.

• 4-channel DECT access point for interpreting, assistive listening, and wireless microphone systems
• Expand to synchronize up to eight AP4 units for a total of 32 audio channels in one network
• Operates as either transmitter (Broadcast Mode) or receiver with backchannel (Full Duplex Mode)
• Dante interface (4 In / 4 Out) supports two flows at 48 kHz, configurable via Dante Controller
• Four analog inputs and outputs via Phoenix connectors for flexible integration
• Ethernet port for network connection and PoE power
• Integrated high-range antennas for stable wireless coverage
• Configurable via free Unite Manager PC software for monitoring and setup
• Includes removable wall/ceiling mounting plate, tripod adapter, and VESA hardware
• Supplied with 36W power supply, international plug set, Phoenix connectors, and cable cover plates
