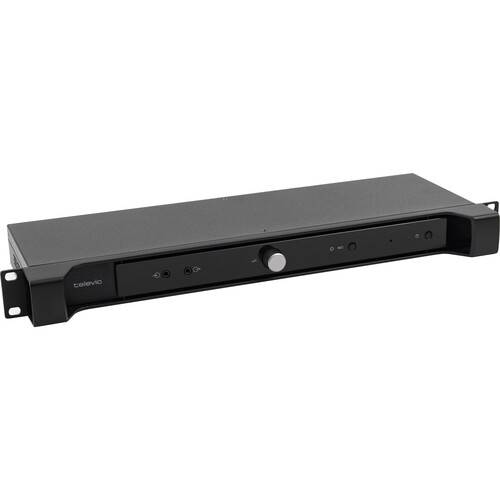

TELEVIC D-Cerno AE Central Unit Audio Engine

Designed for small-to-medium-sized hybrid meetings, the Televic D-Cerno AE is the rack-based central engine that serves as the heart of the D-Cerno digital discussion system, offering several connectivity options such as a USB interface for Teams and Zoom integration, multiple analog I/O, and digital networking protocols.

The central engine controls up to 50 delegate units directly or up to 250 units with additional network extenders. Integration can be done easily by using USB audio, AES67, and analog audio. Its simplified user interface provides all controls at your fingertips, including a volume dial and a one-touch record button. An integrated web server allows operators have full control over the microphone modes and recording settings through an easy web interface.

Benefits

• Plug-and-play approach
• 19” rack-based design
• Hybrid ready via direct USB interface
• Hands-free mode: no need to push a button
• Easy to integrate with AES-67 and USB
• Smart Audio & Control:
• Dynamic Mix minus
• Gain sharing
• API control
• Addressable headphone jacks

• Camera control integration capabilities
• T-Cam or third-party
• Fan-less operation

Additional Details

• Dynamics control
• Integrated web server
• Integrated recording capabilities
• Internal storage
• External flash drive via USB-C ›
• On a PC via multi-channel USB connection

• Hands-free mode (16 microphones)
• With speaker detection

• DSP mode (8x8)
• Fail-safe redundancy technology
• For systems up to 250 units
• System volume
• Recording button
• Secure API
• IEEE802.1X

Connectivity

• 4 bus connections (4 branches or 2 loops)
• LAN connection (Control & AES-67)
• 2 x lockable USB-C connections
• Flash drive interface
• Hybrid meeting Interface
• Multi-channel audio interface

• 2 x balanced XLR inputs
• 2 x balanced XLR outputs
• 1 x front-facing 3.5mm input jack&
• 1 x front-facing 3.5mm output jack
• 1 x power connection
