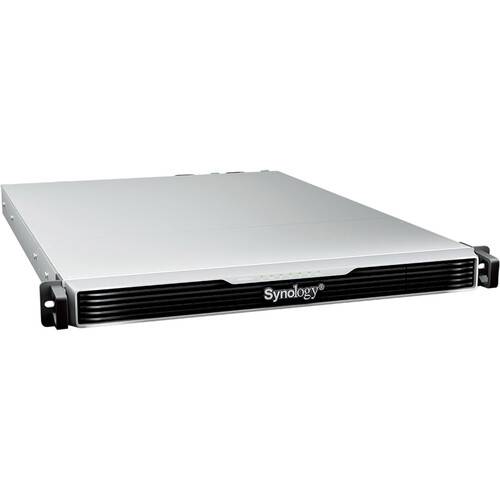

Synology RackStation RS1626xs+ 4-Bay NAS Enclosure

The RackStation RS1626xs+ 16-Bay NAS Enclosure from Synology is an all-in-one solution for central data management, backup, and surveillance. Designed to grow with your business, the RS1626xs+ offers SSD caching support without using up drive bays via two internal M.2 2280 slots and scales up to 16 total drive bays with one RX1225RP 12-bay expansion unit. A full suite of reliability, availability, and serviceability features ensures continuous operation. This unit has four drive bays, each of which natively supports 3.5" SATA hard drives, as well as 2.5" SATA hard drives and SSDs.

The RackStation RS1626xs+ is powered by a 2.9 GHz Intel Xeon D-1726 Six-Core processor and 16GB of DDR4 ECC Registered RAM that may be upgraded to a total of 64GB by installing four 16GB modules into the available memory slots. Also featured are two USB-A 3.2 Gen 1 ports, one Mini-SAS HD port, and network connectivity is achieved via two 10GbE RJ45 ports with failover support. If you're looking to expand this NAS, there is one PCIe 4.0 x8/x8 slot that supports 25GbE SFP+/SFP28 and 10GbE Ethernet NICs, Fibre Channel HBAs, and more.

The RS1626xs+ runs on the DiskStation Manager (DSM) operating system, which helps simplify managing your NAS, plus accessing and sharing data. A variety of RAID modes are supported, which help provide users with data redundancy, speed, or a combination of both. Supported RAID modes include RAID 0, 1, 5, 6, 10, Basic, and F1. For those who do not require a RAID, JBOD is also available, allowing each drive bay to be individually utilized.

Synology has engineered the RS1626xs+ to be energy efficient. Not only does it offer four 40 x 40mm fans to help keep the system running cool, the server supports numerous scheduled power on / off cycles and hard drive hibernation to further minimize power consumption and operation expenses. The RackStation RS1626xs+ operates on 100-240 VAC at 50/60 Hz via dual 250W redundant power supplies and includes an accessory pack, two power cords, and a front cover. Protection is provided by a limited 5-year warranty that covers technical support and hardware replacement services.

Fast and Reliable

Over 84,000 random write IOPS, built-in dual-port 10GbE, and up to 384TB raw storage after expansion

Flexible Configuration

Add 12 extra drive bays, 10/25GbE ports, and SSD cache volumes whenever needed.

Versatile Business Application Platform

Back up endpoints, manage up to 75 IP cameras, or safely sync and share files across sites.

Redundant Power

Redundant power supplies ensure maximum server uptime by preventing single-point power failures.

Failover Cluster

Maximize service continuity by pairing two identical units into a Synology High Availability cluster, ensuring automated, minute-level failover in the event of hardware failure.

Network Redundancy and Load Balancing

Dual built-in 10GbE RJ45 ports can be bonded with Link Aggregation to enable automatic network failover and load balancing.

The RS1626xs+ can be flexibly configured to meet evolving needs through faster networking, local SSD cache, or increased storage.

Flexible Networking Options

Improve I/O performance or add redundancy with optional 10GbE or 25GbE SFP+/SFP28 and 10GbE Ethernet NICs, or Fibre Channel HBAs.

SSD Cache

Two integrated M.2 slots support NVMe SSD caching to reduce latency and improve IOPS in HDD arrays, without occupying PCIe expansion slots or front drive bays.

Storage Expansion

Expand to 16 drive bays with one RX1225RP expansion unit.

Synology Tiering automatically moves infrequently accessed data to cost-efficient tiers, balancing performance and capacity to optimize your storage ROI. The RS1626xs+ can be configured as either hot or cold storage, providing the flexibility to complement your existing hardware and infrastructure.

Provide secure and convenient cross-platform tile access, sharing, and synchronization across multiple locations.

A Private Cloud Suite for File Sharing

Empower your entire organization with streamlined access, sharing, and syncing of data from any location. Establish granular control over file and folder access and sharing permissions. Maintain a comprehensive audit trail of file activities and track changes to file share settings with detailed records.

Multi-Platform Support

Access personal and shared data from mobile apps, desktop clients, web browsers, or another Synology system. Any changes you make are automatically synced to other devices as soon as they are connected.

Cloud-Powered Multi-Site Syncing

Empower global workflows with high-speed access to data from anywhere in your network. Our hybrid cloud solution caches frequently used files locally for rapid access, while less frequently accessed data is stored in the cloud, reducing your on-site storage requirements.

NAS-to-NAS Synchronization

Automate site-to-site data synchronization for better team workflows. Options for one-way or two-way syncing keeps files and folders up-to-date across every data site.

Sync to Public Cloud Providers

Connect seamlessly to public cloud services including Amazon S3, BackBlaze B2, Dropbox, Google Cloud Storage, Microsoft Azure, and OpenStack Swift. Multiple protocol support, client-side encryption, and customizable sync and bandwidth controls enable efficient storage management across various platforms.

Enhance workplace collaboration with Synology Office Suite. Create, edit, and share documents across teams in real time. Host an on-premises mail server to provide web-based email access while maintaining full data ownership. Additionally, stay connected through secure one-on-one chats, public channels, encrypted private channels, and group conversations. AI assistance enhances productivity across apps, with support for leading AI providers via API key integration.

An all-in-one private cloud productivity AI solution with smart tools and privacy controls.

MailPlus

Summarize emails and generate smart replies.

Document

Write and polish drafts.

Slides

One-click translation of the entire presentation and annotations.

Spreadsheet

Analyze data and get formula suggestions.

Endpoint, VM, and NAS/SAN Protection

Securely back up a wide range of systems including Windows, Mac, and Linux endpoints, VMware, and Hyper-V virtual machines, and Synology servers. Expand protection to physical servers running Windows or Linux, as well as storage solutions such as Nutanix Files, NetApp ONTAP, and Windows Server with VSS (Volume Shadow Copy Service). Built-in deduplication technology optimizes storage efficiency, while multi-versioning capabilities provide flexible restoration options.

Microsoft 365 and Google Workspace

Centralize backups of Microsoft 365 and Google Workspace data to protect cloud data from accidents and simplify compliance with data retention policies. Schedulable backups, flexible file versioning, and block-level deduplication ensure flexibility and storage and bandwidth savings.

Efficient and Reliable Synology System Backup

Back up entire systems or all data, applications, and configurations to a wide range of storage destinations, including Synology C2 Storage. In case of data loss, quickly restore complete systems through bare-metal recovery or retrieve individual files as needed. Advanced features including automated scheduling, granular access controls, end-to-end encryption, data deduplication, and multi-version retention empower you to create the optimal backup plan for your data deployment

Tamper-Proof Protection with Immutable Snapshots

Safeguard critical LUNs and shared folders with automated immutable snapshots backed by custom retention policies. Built-in support for offsite replication further ensures robust business continuity.

Synology Surveillance Station

Protecting your business has never been easier, with centralized management, support for over 20,000 IP camer
