SWIT CL-M100D 100W Mini Bi-Color LED Studio Light Panel

The CL-M100D 100W Mini Bi-Color LED Studio Light Panel from SWIT is a 1:1/2 bi-color 100W fixture featuring 2700-6500K CCT tuning with an output of 3400 lux at 3.3'. Add lighting variety to broadcast studio productions and live entertainment setups with high illuminance uniformity and a 62° half peak wide beam angle for a softer and broader light output with flicker-free dimming.

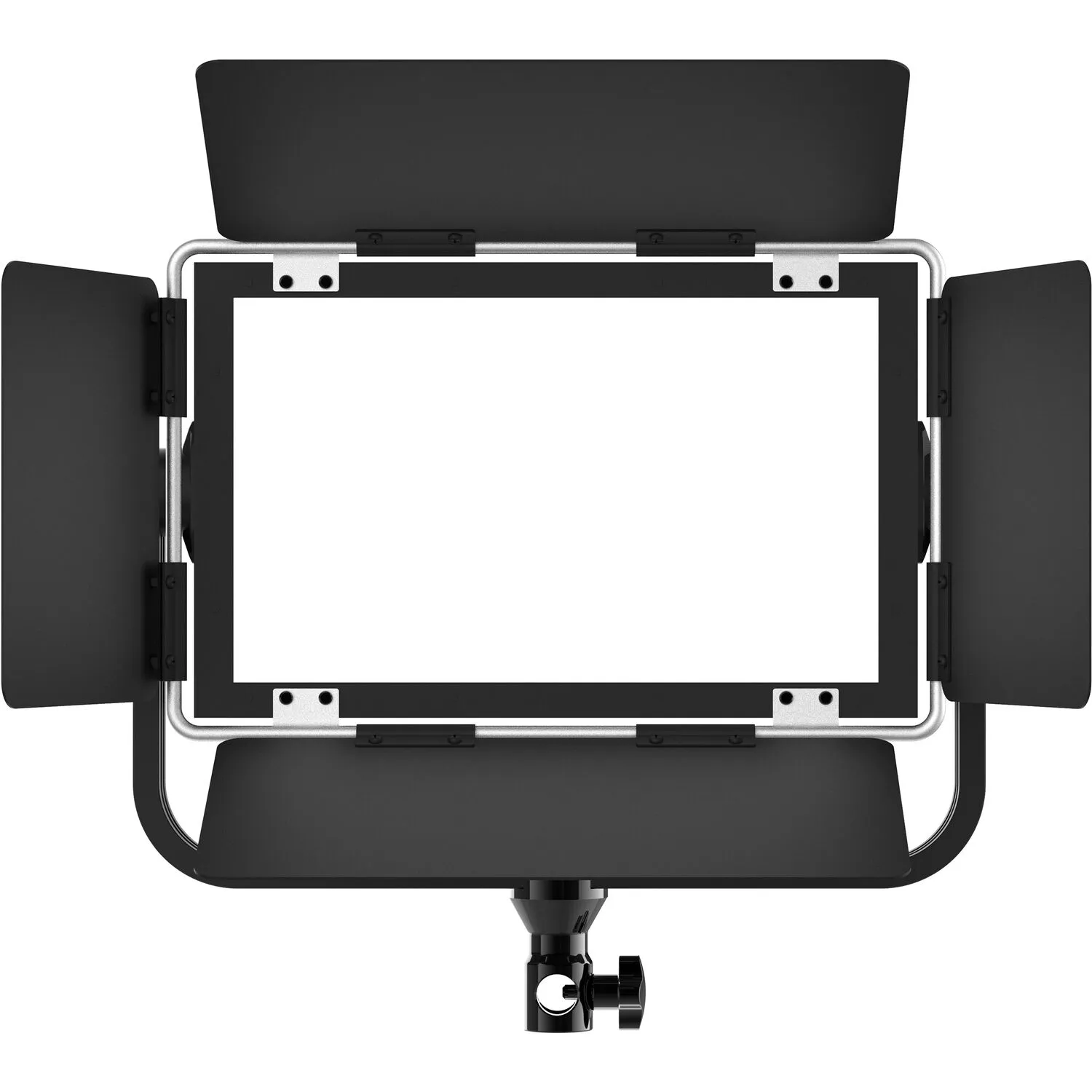

Easily adjust the light's settings with its onboard controls or DMX-512 connectivity. Further shape the light with the fixture's included four-leaf metal barn doors The fixture includes a power cable, a yoke bracket, and two safety ropes for secure mounting.

CCT Settings and Usage

Ideal for broadcast video and studio productions, this 11.7 x 14.6" light panel supports two brightness and color temperature adjustment modes: Normal and Fast. Using the fixture's adjustment knob, quickly change your settings to customize your lighting. The Normal adjustment mode features a 2700-6500K CCT range with 50K adjustment steps and a brightness range of 0-100% with 1% increments.

In Fast adjustment mode, choose a 2700K, 3200K, 4500K, 5600K, or 6500K color temperature option with a brightness range of 0-100% with 10% increments.

Silent Operation

Featuring a fanless design, the CL-M100D operates silently for uninterrupted filming and broadcasting. Instead, the fixture uses a large fin condenser to regulate its internal temperature for seamless operation.

Easy-to-Read LCD Display

Use the light's rear LCD screen to control dimming, color temperature, DMX addresses, group channels, and power indicators. Long press the color temperature knob to set the DMX address and long press the dimmer knob to switch between DMX and group interactive control modes.
