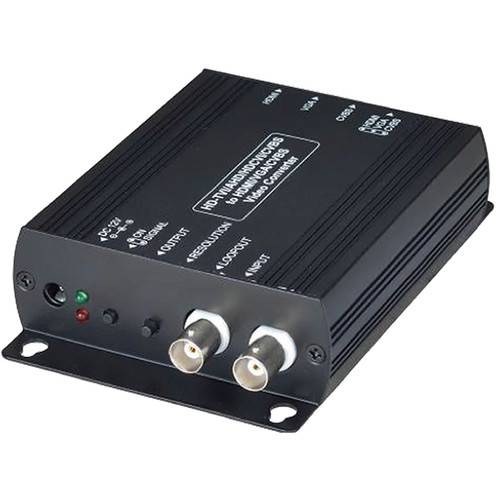

Speco Technologies TVIHD TVI to HDMI Converter

Designed for environments where HD-analog cameras need to be monitored and possibly recorded, the Speco Technologies TVIHD provides a selectable video output in HDMI, VGA, or composite format, each with its own dedicated connector. The TVIHD can accept HD-TVI, AHD, HDCVI, NTSC, PAL, or 960H signal and convert it to an HDMI, VGA, or composite output while feeding a separate loop output to a recorder.

Powered by the included 12V power supply, this compact module supports 720p and 1080p and offers a switch to set the output resolution. LEDs indicate power status, video signal presence, and output selection, plus the OSD shows input and output settings on your monitor.

• Shopper camera awareness
• Simultaneous monitoring
• Entry cameras
• Any installation where HD-analog cameras need to be viewed but not necessarily recorded

• Converts HD-TVI/AHD/HDCVI/NTSC/PAL/960H signals to HDMI, VGA, or composite video
• Supports 720p at 25/30/50/60 Hz and 1080p at 25/30 Hz
• Built-in LED lights on unit to indicate selection
• OSD displayed on monitor to indicate input/output settings
• Includes 12V power supply

• 75-ohm BNC input
• 75-ohm BNC loop output for simultaneous connection to a recorder
• 75-ohm composite video output
• HDMI Type-A video output
• 15-pin D-Sub VGA video output
