Snapmaker 2W 1064nm Infrared Laser Module

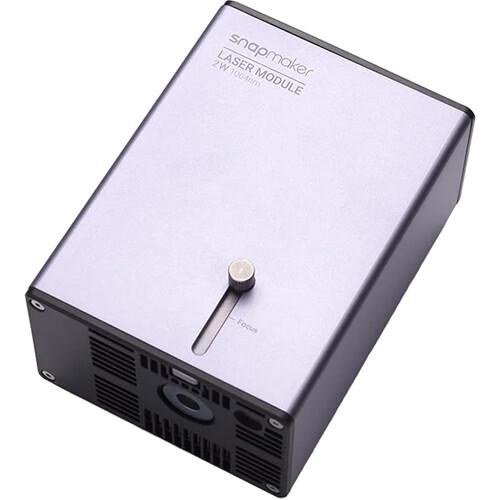

Create vivid engraved images with the Snapmaker 1064nm Infrared Laser Module from Snapmaker. It is for use with Snapmaker's separately available Snapmaker 2.0, Artisan, and Ray series 3D printers. This 2W infrared laser engraves on most materials including metal, plastic, 3D printing filament, acrylic, and more. Aim the laser reliably with an auto focus through manual measuring, or with material touch measuring via the focus lever. A built-in safety kill switch stops the laser if the installation is incorrect or tilted.

Compatibility

• Ray
• Artisan(3-in-1 version)
• Snapmaker 2.0 series
• Air Purifier
• Rotary Module
• CAN Hub
• Emergency Stop Button
• Quick Swap Kit
• Bracing Kit

Supported Engraving Materials

Metal * Painted Metal * SPTE (Steel Plate) * Anodized Aluminum * Tinplate * Gold * Silver * Copper * Titanium * Stainless Steel * Aluminum

Plastic (Opaque) 3D Printing Filament (Dark Opaque)

• ABS
• PLA
• PETG

Acrylic (White Opaque & Black Opaque) Others

• Leather
• Silicone (Dark Opaque)
• PCB

Maximum Work Speed

• Snapmaker 2.0: 100mm per second
• Artisan: 200mm per second
• Ray: 500mm per second

Work Area

• 150 x 150mm (A150 with quick swap kit)
• 140 x 150mm (A150 without quick swap kit)
• 240 x 250mm (A250 with quick swap kit)
• 240 x 230mm (A250 without quick swap kit)
• 340 x 350mm (A350 with quick swap kit)
• 340 x 330mm (A350 without quick swap kit)
• 400 x 400mm (Artisan)
• 600 x 400mm (Ray)

Supported Design Files

• STL
• SVG
• JPEG
• PNG
• JPG
• BMP
• DXF
• SNAPLZR

EAN: 6971573441801
