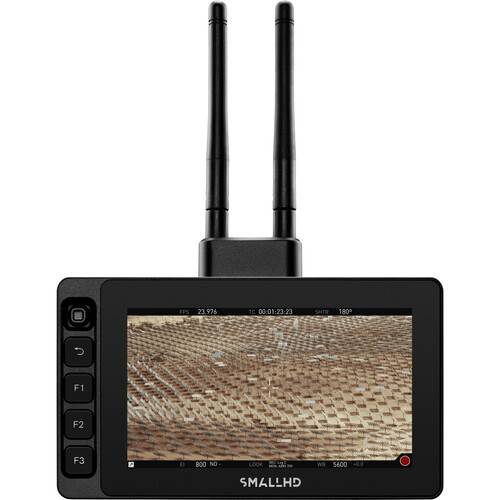

SmallHD ULTRA 5 Bolt 6 TX 750 Monitor

Add an ultra-bright monitor with wireless control to your production rig with the SmallHD ULTRA 5 Bolt 6 TX 750 Monitor. The unit includes an ULTRA 5 bright 5" on-camera monitor and an integrated Bolt 6 transmitter from Teradek. The monitor features a 3000 bright cd/m² display, a 1920 x 1080 touchscreen LCD, HDMI and 3G-SDI inputs/outputs, camera control options, and 10-bit 4:2:2 Rec. 709 color processing.

The built-in transmitter module provides wireless image transmission up to 750', as well as wireless camera control using an optional receiver module on the other end. The module can transmit via the 6 GHz wireless band to up to six Teradek Bolt 6 series receivers, as well as to 5 GHz receivers such as the Teradek Bolt 4K series.

The Ultra 5 Bolt 6 TX 750 integrates a Bolt 6 750 Transmitter directly inside the Ultra 5 monitor, allowing you to wirelessly send the image from your camera up to 750' away

Daylight-viewable, 5" touchscreen on-camera monitor with 3000 cd/m² brightness

Slim, lightweight design with 10-bit 4:2:2 DCI-P3 color, touchscreen LCD panel

HDMI and 3G-SDI inputs and outputs

The Bolt 6 750 TX is a real-time wireless video transmitter that supports video signals up to 4K30 via HDMI with no image delay, allowing you to send color-accurate, True HDR images in less than 0.001 seconds

Buttons around the monitor allow you to use the monitor in any conditions

The PageOS 5 toolset with EL Zone Exposure Assist, best-in-class waveform, false color, Look-Around Camera Control (sold separately), advanced Teradek RT overlays, and more

Four 1/4"-20 mounting threads on the left, right, bottom, and back of the monitor

Power using a 2-pin power input

Optional RED camera control via the micro-USB port

Optional ARRI/Sony VENICE camera control via the Ethernet port

Durable aluminum chassis

• Pixel zoom: 2x and 4x with pinch-zoom
• Aspect ratios: Preset and customizable
• DSLR scale: Canon 5D Mk II and Canon 7D
• Custom scale: Underscan only
• Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
• Image flip: Auto and manual
• Image rotation: Auto and manual
• Cross conversion: HDMI to SDI, SDI to HDMI
• Color focus assist: Adjustable style and intensity
• Peaking: Adjustable intensity
• False color: Spectrum, ARRI-style, and customizable
• Zebra: Dual, customizable
• Waveform: Luma and RGB, customizable with region-of-interest highlighting
• Vectorscope
• RGB parade, customizable
• Histogram: Luma and RGB
• Image capture, with a dedicated button and image gallery
• Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
• LUT import: Via SD card or USB storage device
• Image overlay: Opacity slider and blink setting
• Image capture
• Audio meters: Up to eight channels
