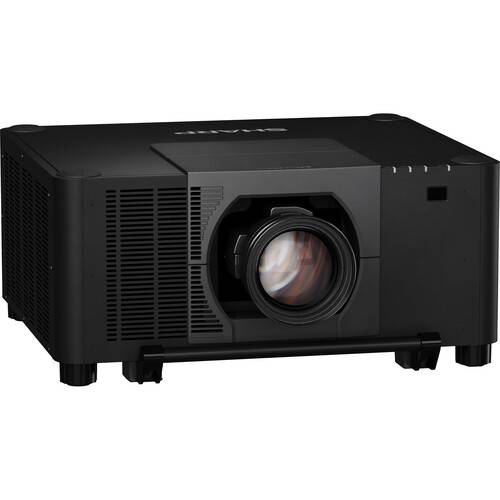

Sharp XP-A201U-B 20,000 ISO-Lumen WUXGA RB-Laser LCD Projector (No Lens)

The Sharp XP-A201U-B 20,000 ISO-Lumen WUXGA RB Laser LCD Projector is a large-venue, professional installation projector with features well suited to higher education and corporate users. A long-lasting laser light source and IP5X rated sealed optical engine provide thousands of hours of virtually maintenance free operation.

Installation is flexible with a complete line of optional motorized lenses (sold separately). Connect sources via HDMI, HDBaseT, or 3G SDI inputs. The onscreen resolution is Full HD, with input support for 4K content and passthrough for multi-projector setups. Built-in stacking and edge blending supports up to four projectors without the need for external hardware or processing.

HDBaseT is optimized for video applications and supports uncompressed full HD digital video, audio, ethernet, power, and various control signals. With only a single cable (up to 100m) to run, infrastructure and labor costs are reduced, installations are significantly easier, and there is no cable clutter to manage.

Built-in software supports picture-in-picture and picture-by-picture displays. TileMatrix capability via HDBaseT output enables 4K resolution using four projectors, with no need for external hardware. Built-in edge blending helps create a seamless image with multiple projectors.

This projector includes built-in stacking correction capabilities for up to four projectors. Stacking correction allows the projectors to boost an image’s brightness up to 80,000 lumens, which is ideal for larger sized screens and environments with heavy ambient light. This feature also prevents the complete loss of an image, which can happen when using only one projector.

Projector management software for installation professionals provides full control for multiple screens to create the perfect image. Controls such as input switching, picture, lens, edge blending, uniformity, and gamma control are adjustable though the GUI.

Integrated software applications such as AMX Beacon, Crestron Roomview, Extron XTP, and PJ Link allow for complete control system support. Furthermore, learning of basic control of competitors' products reduces the need for reprogramming of a control system lowering the cost of your installation by eliminating the need for costly reprogramming of a control system.

• Optional lenses support projection distances from 4.25 to 141'
• Bayonet style lenses provide quick and easy exchange
• Motorized zoom and focus
• Roll-free installation capability, including portrait orientation
• RB (Red and Blue) Laser system achieves 92% of the DCI color space
• IP5X certified sealed LCD cooling system prevents dust from reaching the optics and eliminates the need for a filter
• Built-in wall color correction
• NaViSet Administrator 2

EAN: 0074000703896
