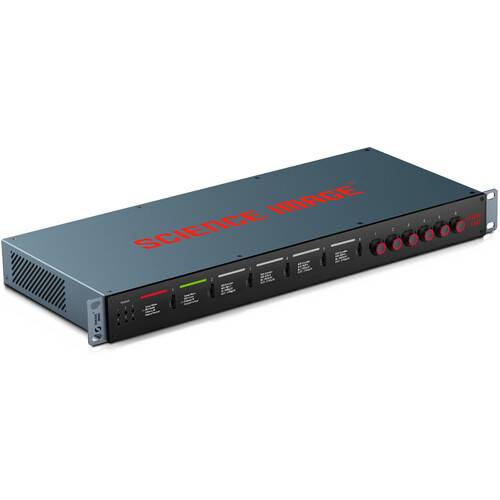

SCIENCE IMAGE Studio Edge 6-Channel Rackmount Bidirectional 4K SDI/HDMI/Full NDI Converter (1 RU)

The Studio Edge 6-Channel Rackmount Bidirectional 4K SDI/HDMI/Full NDI Converter from SCIENCE IMAGE is a compact 1 RU short-depth chassis, featuring high-density, multi-channel NDI conversion capabilities. Ideal for studios requiring efficient management of numerous NDI sources and destinations within a single device, its blend of connectivity and performance is impressive. The Studio Edge series doubles as a display management system for digital signage, leveraging its integrated fiber connections to transmit video and audio over extended distances without signal degradation.

Driven by the same high-bandwidth NDI encoding and decoding engine found in the NDI Studio 4K.SH and STUDIO 2 standalone converters, the Studio Edge series offers identical connectivity within a rack-mountable chassis, powered by a single power supply. Each channel boasts independent power switches, LED displays, tally lights, video inputs and outputs, network connections, and audio ports. The unit supports VISCA and Pelco P and D support for use with compatible, separately available PTZ cameras.

Features at a Glance

• 6-channel rackmount 4K Full NDI converter with fiber TX/RX and analog audio in/out
• Bidirectional high-bandwidth NDI encoder and decoder
• Up/down/cross conversion of 27 formats
• 6 x 12G-SDI inputs and outputs, 6 x HDMI 2.0 inputs and outputs, handling signals up to 2160p60
• 6 x 3.5mm stereo headphone outputs, 6 x 3.5mm stereo line-in inputs
• 6 x 1.3” OLED screen with status, video format, IP address, and more
• 6 x scroll wheel button for direct menu operation as well as web UI control
• Audio embed/de-embed from stream, two-way intercom per channel
• AC power Inputs with 6 x LED illuminated power buttons

EAN: 6974658120233
