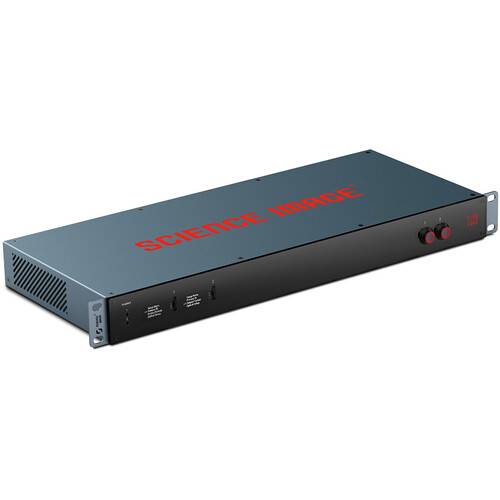

SCIENCE IMAGE Flow Edge 2-Channel Rackmount 4K Up/Down/Cross Converter (1 RU)

The Flow Edge 2-Channel Rackmount 4K Up/Down/Cross Converter by SCIENCE IMAGE combines the adaptability of the popular Flow 4K and Flow 2 converters, condensing them into a single rack unit with centralized power. This simplifies the process of constructing a multi-source, multi-destination rack kit.

With Flow Edge, users can handle up to two channels of up/down and cross conversion for virtually any video format up to 4K at 60 fps, utilizing HDMI 2.0 and 12G-SDI connections. Each channel of the Flow Edge comes equipped with its own dedicated LED screen, menu control wheel, network port, video input/output, audio input/output, and power button. The Flow Edge is enclosed within a compact 1 RU, short-depth chassis.

Features at a Glance

• 2-channel rackmount 4K 12G-SDI/HDMI up/down/cross converter with fiber TX/RX and analog audio in/out
• Up/down/cross conversion of 35+ formats
• 2 x 12G-SDI inputs and outputs,2 x HDMI 2.0 inputs and outputs, handling signals up to 2160p60
• 2 x 3.5mm stereo headphone outputs,2 x 3.5mm stereo line-in inputs
• 2 x 1.3” OLED screen with status, video format, IP address, and more
• 2 x scroll wheel button for direct menu operation as well as web UI control
• Audio embed/de-embed from stream, two-way intercom per channel
• 2 x RJ45 Gigabit Ethernet,2 x optical fiber SFP+ interfaces (for optional 12G-SDI transceiver)
• AC power Inputs with 2 x LED illuminated power buttons

EAN: 6974658120257
