Schoeps Colette CMC 1 U Microphone Amplifiers and MK 8 Figure-8 Capsules Stereo Set (Matte Gray)

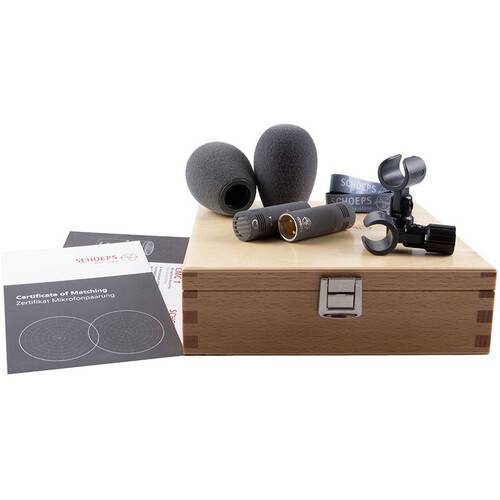

Popular among professional audio engineers, the matte gray Schoeps Colette CMC 1 U Microphone Amplifiers and MK 8 Figure-8 Capsules Stereo Set is an ultracompact, space-saving Colette-Series modular microphone bundle that includes two CMC 1 U (XLR output) miniature microphone amplifiers, a matched pair of MK8 figure-8 mic capsules, two SG 20 stand mounts with swivels, two B 5 D solid-foam popscreens, and a premium case for secure transport and storage.

Popular among professional audio engineers, the matte gray Schoeps Colette CMC 1 U Microphone Amplifiers and MK 8 Figure-8 Capsules Stereo Set is an ultracompact, space-saving Colette-Series modular microphone bundle that includes two CMC 1 U (XLR output) miniature microphone amplifiers, a matched pair of MK8 figure-8 mic capsules, two SG 20 stand mounts with swivels, two B 5 D solid-foam popscreens, and a premium case for secure transport and storage.

The MK 8 capsule is often used for M/S and double M/S stereo sound in film and music recording—in combination with Colette or CCM microphones and/or a CMIT shotgun microphone. The figure-eight pattern of the MK 8 remains constant from low to high frequencies. The pickup direction is lateral, i.e. perpendicular to the microphone housing. The 0 and 180° axes are indicated respectively by red and black dots on the capsule housing.

Thanks to the inclusion of the ultracompact CMC 1 U amplifier, this bundle serves as a lighter and smaller alternative to the acclaimed CMC 6 amplifier, without compromising sonic performance.

The matte gray Schoeps CMC 1 U is a miniature Colette Series microphone amplifier offering uncompromising high fidelity in a lightweight and ultracompact form factor for studio recording, broadcast, and live stage applications. Presented as an alternative to the renowned Schoeps CMC 6 amplifier, the CMC 1 U is compatible with all existing MK mic capsules and Colette active accessories (all available separately).

It features a balanced XLR output, compliance with 12 or 48V phantom power, and low current consumption. Its Schoeps RFI Shield provides high immunity from RF interference for a clean, low-noise signal. The CMC 1 U supports the high maximum SPLs tolerated by the various MK mic capsules (available separately).

The matte gray MK 8 Microphone Capsulefrom Schoeps is a true dipole (bidirectional) transducer, operating with a single diaphragm. Its main axis is at a right angle to the capsule, and is marked at 0 and 180° with a red and a black dot, respectively. Both the microphones that are included are phase-matched.

When M/S stereo recordings are made, the 0° axis normally faces to the left as viewed from behind the microphone setup. The 8 engraved on the top of the housing should be aligned on its side so as to appear horizontal, at a precise right angle to the mid capsule. The microphone should be placed directly above or beneath the M channel microphone, and as close to it as possible. The sound quality of this capsule is clear and neutral. The frequency response rolls off above 16 kHz.
