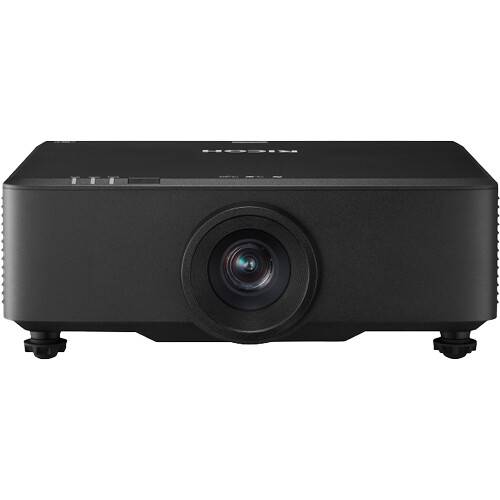

Ricoh PJ-WUL6680 8500-Lumen WUXGA Laser DLP Projector

Tackle large-venue and multi-projector installations with ease using the Ricoh PJ-WUL6680 8500-Lumen WUXGA Laser DLP Projector. Featuring a bright multi-module laser light source, advanced image processing, and geometric correction, the PJ-WUL6680 is engineered for large conference rooms, lecture halls, and auditoriums. Equipped with a wide range of image adjustment functions, including edge blending, motorized lens shift, zoom, and focus, this projector can be adjusted to fit an array of orientations, angles, and surfaces, including curved spaces and uneven walls.

Laser light sources typically enable maintenance-free operation for up to 20,000 hours. By utilizing a multi-module design, the laser beam originates from several laser diodes. This configuration ensures that even if one diode experiences a malfunction, the overall brightness remains relatively unaffected. This design significantly reduces the likelihood of abrupt loss of projection light sources during crucial presentations, resulting in enhanced stability and reliability.

With a wide horizonal shift of ±25% and vertical shift of ±55%, the motorized lens adjustment allows for more flexibility after installation. Eliminate the need to physically adjust the projector with motorized focusing and high-magnification zoom capabilities.

Featuring four corner correction, grid correction, and ±30° vertical and horizontal keystone correction, the PJ-WUL6680 can adjust for a wide variety of angles and even curved surfaces, using the remote control.

Built-in edge blending functions allow for seamless multi-projection of large images. This feature dynamically adjusts the fusion bandwidth to eliminate excessive brightness in overlapping areas.

HDBaseT technology is a multi-signal transmission system that uses a single ethernet cable. High-definition video, audio, control functions, and data can be transmitted uncompressed through LAN cable, with a maximum transmission distance of up to 328'/100m.

By using the remote control numbering function, up to 99 projectors can be set with different remote control numbers. The remote can control the corresponding projectors by switching different IDs, avoiding simultaneous control of multiple adjacent projectors when using the IR remote.

The PJ-WUL6680 is compatible with various network protocols such as Extron, PJ Link, AMX, Telnet, and Webserver. Manage the status and operation of multiple projectors over your local wired network.

• Covers more than 97% of the Rec.709 color gamut
• Certified IP5X dust resistant
• HDMI 2.0 input compatible with 4K sources
• Picture-in-picture and picture-by-picture capability
• DICOM-Sim mode
• Supports 360° and portrait orientation
