RGBlink MSP 405 HDMI/SDI/Fiber Converter

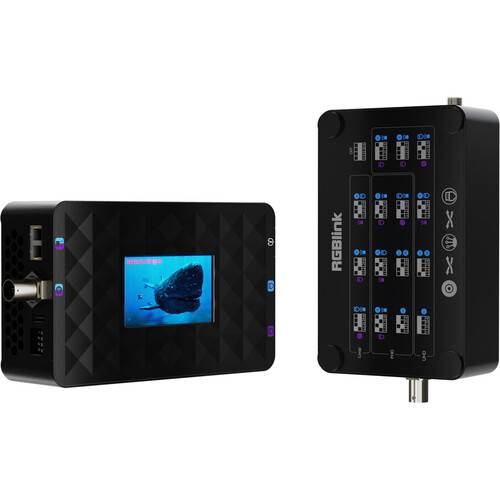

Cross convert multiple signal types with this MSP 405 HDMI/SDI/Fiber Converter from RGBlink. The compact unit features HDMI 2.0, 12G-SDI, and SFP fiber inputs and outputs, and it can be configured to input, output, and convert up to UHD 4K video in various I/O configurations. It also includes analog audio input and output to embed or playback/output audio. An LCD touch display allows you to preview your video and select sources and outputs as well as configure a test pattern. A USB-C input is available for firmware upgrades.

• Convert SDI signal (HD/3G/6G/12G-SDI) to HDMI 2.0 signal; supports auto-format adaptation
• Convert HDMI 2.0 signal to SDI signal (HD/3G/6G/12G-SDI); supports auto-format adaptation
• Convert LC fiber signal to SDI signal (HD/3G/6G/12G-SDI); supports medium to long-distance transmission and auto-format adaptation
• Convert SDI signal (HD/3G/6G/12G-SDI) to fiber signal; support signal relay for long-distance transmission
• Convert HDMI 2.0 signal to LC fiber; support medium to long-distance transmission and auto-format adaptation
• Convert LC fiber signal to HDMI 2.0 signal; support medium to long-distance transmission and auto-format adaptation

• Standard Test Pattern generator built in for on-site setup
• Upgrade and control via USB-C port and dip switches
• Built-in LCD preview monitor with touch panel for menu operation
• Auto Power Switching: when the primary battery's charge is low, it automatically switches to the backup battery
• Audio playback and embedding function

EAN: 6976965940559
