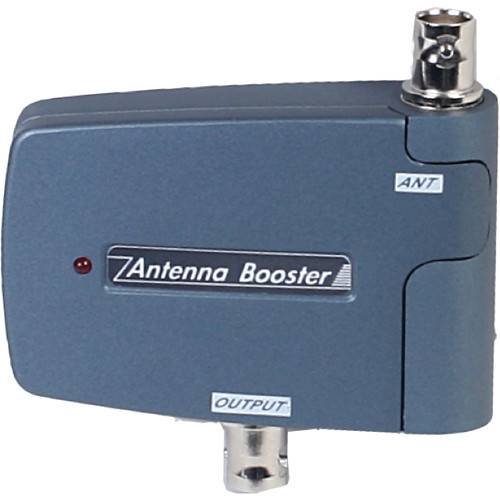

The RF Venue ILAMP-ACT is an in-line amplifier designed to compensate for RF antenna signal loss on long coax runs. One ILAMP-ACT provides 10 dB of gain, enough to compensate for 66' of RG-58 cable. For longer runs, up…
Product highlights and buying context
The RF Venue ILAMP-ACT is an in-line amplifier designed to compensate for RF antenna signal loss on long coax runs.
One ILAMP-ACT provides 10 dB of gain, enough to compensate for 66' of RG-58 cable. For longer runs, up to two in-line amps can be cascaded using either a BNC female to BNC female adapter or a coax jumper cable (both available separately).
The unit can be powered via the antenna power output from an antenna distributor or a receiver, or using the included AC adapter. A red light indicates the unit is getting power.
A wall-mount adapter is included for installs.
Note that two ILAMP-ACT in-line amps are required for diversity applications.
