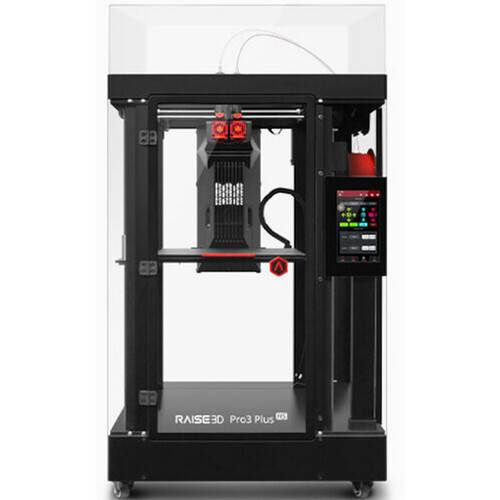

Raise 3D Pro3 Plus HS 3D Printer

The Pro3 Plus HS 3D Printer from Raise 3D is designed to meet the demands of both production and rapid prototyping, offering high-precision and stable 24/7 operation. The Pro3 Plus HS 3D Printer provides a build volume of 10" x 11.8" x 23.8", making it ideal for large-scale and multi-size printing needs. The 3D printer features enhanced usability and a smart assistant system called EVE, helping streamline the printing process. The Pro3 also integrates seamlessly with a comprehensive software ecosystem, including the ideaMaker slicing program, the open-source ideaMaker Library, and RaiseCloud, a cloud-based 3D printing management platform.

The Pro3 is compatible with 0.2, 0.4, 0.6, 0.8, and 1mm nozzles, and the layer height can vary between 0.05-0.6 mm. To achieve stable print results when using 0.4 mm nozzles, we recommend using a layer height between 0.1-0.3mm.

The Pro3 Series replaces the drag chain cable with a lightweight cable to reduce the weight of the extruder and keep the center of gravity in the middle during printing for more stable print quality. The Pro3 Series also uses digital temperature measurements for accurate temperature readings to prevent jamming.

Bed leveling is the process of confirming that the printing platform is as level as possible. The Pro3 Series has this leveling procedure as an automated function. Auto bed leveling will maintain the distance between the print nozzles and the bed to create a uniform build area. This improves bed adhesion and allows the nozzle to adjust to even the most minor surface contour changes.

The Pro3 Series uses an HD camera to monitor the entire 3D printing process of every print job. This camera operates by connecting to RaiseCloud, allowing users to keep track of every print job remotely and while on the move. This ability to check the 3D printing process gives peace of mind. The Pro3 Series also comes with an upgraded CMOS sensor to ensure better image quality.

The Pro3 Series has a filament run-out sensor on its extruders to alert when the filament is about to run out. It also has a second-generation power loss function to save the printing status in the event of a power outage and can continue printing from the same point when power is restored.

Another safety feature of the Pro3 Series is that it can automatically detect when a door is opened and will immediately pause the print.

The Pro3 Series is compatible with a variety of 3D printing filaments to meet project requirements.

The Air Flow Manager of the Pro3 Series is located on the back of the printer, improving heat dissipation and air circulation, creating a stable environment inside the print chamber.

The Pro3 Series has a built-in EVE assistant system, preloaded with common printing problems and corresponding solutions. The EVE assistant can guide users to accurately locate and resolve issues that could affect the final print job. The EVE assistant has a function that gives users reminders about regular scheduled interventions to ensure that printer maintenance is performed on time. It also helps reduce maintenance time and communication costs for an efficient maintenance process.

The Pro3 Series is equipped with an independent modular extruder with a dual extrusion system. This allows the Pro3 Series to print using a variety of filaments, reduce clogging, and allow the convenient disassembly and replacement of components. The hot end of the Pro3 Series is easy to remove, which can be done without using tools, making it simple to replace and maintain. Users can also easily take off the front cover of the extruder to accurately locate common printing occurrences, such as filament jams.

The Pro3 Series is equipped with a flexible build plate. The flexible build plate can be used to easily remove printed parts while minimizing potential damage to the final print. Additionally, the flexible build plate can quickly regain its shape.

Having a <1 second switch time means the Pro3 Series can change directions while printing an object. This shortens the overall time needed to complete a 3D printing process. Keep in mind, the general time savings will still be influenced by the project type.

The 1.5mm lifting distance on the Pro3 Series maintains enough distance between the idle nozzle and the model to not affect the printing process.

The HEPA air filtration removes toxic particles released during the 3D printing process.

7" touchscreen for efficiency and to monitor the printing process with 3D printing software.

A strong metal frame acts as a reliable motion system for smooth movement and precise positioning for higher quality printing. Offers continuous printing, which is the ability to switch from one nozzle to another mid-print if the first nozzle has run out of material.

Connects with the ideaMaker software library, which provides users with slicing profiles for various filaments, including Raise3D filaments and OFP-certified filaments, simplifying the settings of printing parameters for different filaments. Also compatible with RaiseCloud, a cloud-based 3D printing management platform capable of remotely monitoring the printing process and organizing print jobs for more efficient 3D printing.
