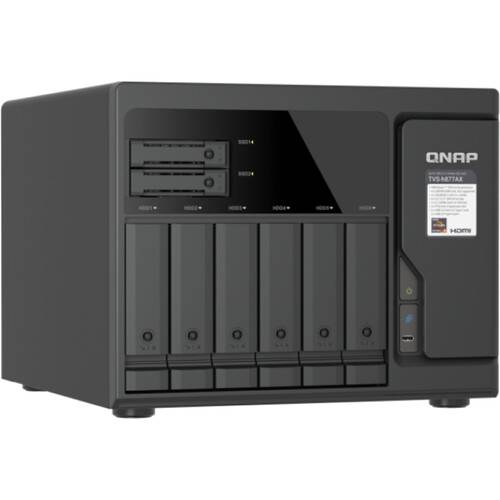

QNAP TVS-h877AX 8-Bay NAS Enclosure

The TVS-h877AX 8-Bay NAS Enclosure from QNAP combines ZFS data integrity with Qtier storage tiering technology, redefining performance standards for professional video collaboration and enterprise virtualization. Its six 3.5"/2.5" SATA III drive bays and two 2.5" U.2 NVMe PCIe 4.0 x4 bays handle massive storage volumes and ultra-fast data access, while a 3.8 GHz AMD Ryzen 5 PRO 7645 6-Core processor with Zen 4 architecture, 16GB of DDR5 RAM, and the ZFS file system handles heavy workloads, including multiple virtual machines (VMs), containers, and high-resolution video transcoding.

The TVS-h877AX has two 10GbE ports and two 2.5GbE ports for fast data connections. Peripherals and external storage drives may be added using two USB-C 3.2 Gen 2 ports, two USB-A 2.0 ports, and one HDMI 1.4b port that supports resolutions up to 4096 x 2160 at 30 Hz. Expansions, including 10/25GbE network cards, QM2 cards, SAS/PCIe/SATA storage cards, graphics cards, and more may be added using one PCIe 4.0 x8 and two PCIe 4.0 x4 slots. Also supported are RAID 0, 1, 5, 6, 10, 50, 60, Triple Mirror, Triple Parity, and JBOD, read speeds of up to 12,172 MB/s and write speeds of up to 11,106 MB/s via 5 x 25GbE and U.2 NVMe SSDs, AES-NI volume encryption, and more. Available operating systems include QTS or QuTS hero.

Featuring the latest Zen 4 architecture AMD Ryzen 5 PRO 7000 series processor, delivering significant performance gains. Combined with expandable DDR5 memory up to 192GB, it effortlessly handles demanding workloads including multiple virtual machines (VMs), containers, and high-resolution video transcoding.

Maximize storage efficiency without compromise. The TVS-hx77AX features dedicated 2.5" U.2 NVMe PCIe Gen 4 SSD slots for ultra-low-latency access. With the upcoming QuTS hero h6.0, Qtier storage tiering will be supported, allowing you to manually move hot data to high-speed SSDs while cold data remains on HDDs - achieving the perfect balance between performance and cost.

The TVS-h877AX features a 3.8 GHz AMD Ryzen 5 PRO 7645 processor (Zen 4 architecture), delivering exceptional multitasking performance and energy efficiency. Combined with 64GB DDR5 memory and 3 x 25GbE SmartNICs, it achieves outstanding sequential throughput and random IOPS under high-load enterprise workloads.

5 x 25GbE SMB Sequential Throughput (1M)

Read speeds up to 12,172 MB/s and write speeds up to 11,106 MB/s.

5 x 25GbE iSCSI Random IOPS (4K)

Read speeds up to 1,253,234 IOPS and write speeds up to 791,094 IOPS.

Maximize storage efficiency. Manually move active data to high-performance SSDs and cold data to high-capacity HDDs.

Eliminate CPU bottlenecks. NFS over RDMA transfers data directly between memory, delivering NVMe-like responsiveness to your workstation. This enables seamless integration with NVIDIA GB10 Grace Blackwell-powered AI supercomputers, significantly accelerating AI inference and fine-tuning workloads.

The TVS-h877AX features 3 PCIe Gen 4 slots, providing flexible hardware upgrades to meet growing business needs. Install 25GbE network cards for higher bandwidth, or add NVIDIA RTX 4000/5000 series graphics cards to boost AI computing and video processing capabilities.

Slot 1: PCIe Gen 4 x4

Slot 2: PCIe Gen 4 x8 (or x4)

Slot 3: PCIe Gen 4 x4

Note: When Slot 1 is not in use, Slot 2 provides PCIe Gen 4 x8 bandwidth; when Slot 1 is in use, Slot 2 provides PCIe Gen 4 x4 bandwidth.

The TVS-h877AX is a powerful platform for virtualization. Equipped with a high-frequency AMD Ryzen processor and supporting up to 192 GB DDR5 memory, it runs multiple virtual machines and containers simultaneously without performance lag. By installing a discrete graphics card (up to 200W) in a PCIe Gen 4 slot, GPU passthrough can be enabled for virtual machines, dramatically boosting graphics performance for design, engineering, or AI analytics workloads.

VMs

Run Windows, Linux, UNIX, and Android virtual machines directly on the NAS via Virtualization Station.

Containers

Run LXD and Docker containers for lightweight virtualization and microservices application development.

SR-IOV

Install a compatible PCIe network card (QXG-25G2SF-BCM and QXG25G2SF-E810) to enable SR-IOV for improved network resource allocation to virtual machines.

GPU

Directly assign a PCIe GPU to a virtual machine to meet the demands of tasks requiring high graphics computing power.

Prevent unexpected downtime and data loss. Build an HA cluster using two TVS-h877AX units - one as the active server and the other as the passive server. When the active server encounters an unexpected failure, the passive server automatically takes over, providing instant protection. This ensures uninterrupted storage services and system availability.

Easy Management and Monitoring

Easily set up, remove, or rebuild clusters via the High Availability Manager application.

Ensure Data Consistency

Real-time data synchronization between active and passive servers minimizes data loss risk (RPO).

Ensure Critical Business Continuity

When the active server fails, the passive server can take over within 1 minute (RTO < 60 seconds).

Built a Smart Knowledge Hub with RAG Search

The TVS-h877AX integrates the Qsirch search engine with RAG technology, cloud-based LLMs, and generative AI to perform precise natural language searches across massive NAS file content, generating summaries and actionable insights.

Full-Text Search

Search files by file name, content, title, metadata, email subject and body, file path, and more.

Document Preview

Preview document content without opening files, view keyword-related paragraphs, and see sentences related to the file's topic.

Image Search

Search images by color or object. AI OCR can recognize and extract text from images.

At-a-Glance File Distribution

Stay informed about data and file storage usage and distribution on TVS-h877AX through charts and analytics.

Bolster business data security with resilience from all aspects.

Enterprise Private Network Connection

Build secure VPN connection using QVPN Service. Multi-site organizations can leverage QuWAN SD-WAN to quickly set up Mesh VPN for remote workers and branches.

Filtering Unauthorized Access

Implement QuFirewall to allow/deny specific IP addresses and regions, preventing unauthorized access and cyber threats.

Efficient NAS User Management

The TVS-h877AX supports Windows AD, Azure AD, and LDAP; Admins can further improve management productivity and NAS security via delegated administration.

Strengthened NAS Login Security

Set up passwordless login or two-factor authentication (2FA) for your NAS accounts to prevent data breaches and unauthorized access.

SMB Signing Acceleration

Enable SMB signing to facilitate secure SMB file transfer, while QNAP's exclusive algorithm greatly increases data signing efficiency and data transmission performance.

Security and Risk Assessment

Security Center proactively detects NAS status and unusual file activity, and offers instant protective measures.

Centralized Notification Management

Centrally manage system events and alert notifications via Notification Center to stay up-to-date with NAS status.

Block Malware Attacks

Malware Remover regularly scans your NAS. When detecting malware attacks, infected files are immediately blocked and removed to ensure NAS security.
