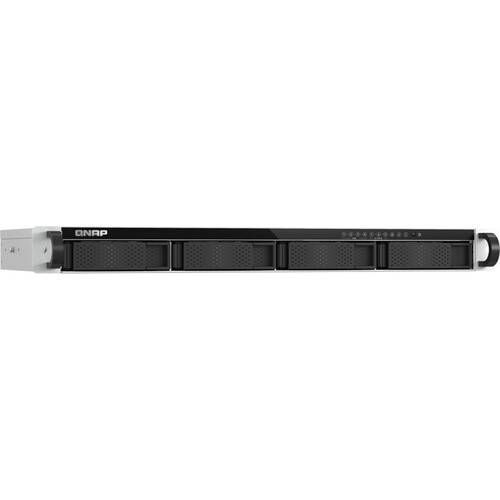

QNAP TS-h765eU 4-Bay NAS Enclosure

Powered a 3.4 GHz Intel Atom x7405C 4-Core processor, the TS-h765eU 4-Bay NAS Enclosure from QNAP offers an efficient and reliable storage solution for various needs in 1 RU rack environments. It is equipped with four 3.5" SATA III drive bays and three E1.S/M.2 PCIe NVMe slots for expandability, making it an ideal NAS for high performance and multitasking demands. Backed by the ZFS-based QuTS hero operating system, the TS-h765eU helps ensure data integrity and WORM protection for data immutability.

The TS-h765eU has two 2.5GbE ports with the option for a 10GbE upgrade. Peripherals and external storage drives may be added using a 10 Gb/s USB-A 3.2 Gen 2 port and 480 Mb/s USB-A 2.0 port. Also supported is RAID 0, 1, 5, 6, 10, and JBOD, read speeds of up 574 MB/s and write speeds of up to 591 MB/s via 2.5GbE, AES 256-bit and AES-NI volume encryption, and more. QNAPS's QuTS hero operating system adopts the highly reliable ZFS file system to provide the utmost data integrity and stability for mission-critical storage. QuTS hero further optimizes SSD performance and endurance to meet businesses' stringent demands for performance and reliability.

The TS-h765eU has a shorter chassis depth of only 12", making it easy to install in small cabinets and various space-limited environments, including factories, small offices, surveillance rooms, audio/visual rooms, or in-vehicle applications.

Intel Atom x7405C Quad-Core processor (up to 3.4 GHz).

Built-in DDR5 non-ECC RAM (supports in-band ECC); upgradable to 16GB (1 x 16GB).

AES 256-bit hardware-accelerated encryption boosts system performance while securing sensitive data.

With dual 2.5GbE SMB sequential throughput (1M), users will get read speeds up to 574 MB/s and write speeds up to 591 MB/s. Using dual 10GbE SMB sequential throughput (1M), read speeds reach up to 2358 MB/s and write speeds max out at 2352 MB/s.

The TS-h765eU comes with three E1.S / M.2 PCIe NVMe slots that offer great NAS flexibility for boosting performance. To reach its full potential, it is recommended to upgrade the TS-h765eU to support high-speed 10GbE networking and pair it with M.2 SSDs.

• Create an SSD System Drive: Use the E1.S / M.2 PCIe NVMe SSD storage pool as the QuTS hero system drive to achieve optimal NAS system performance, efficient application metadata management, and optimized database operations.
• Create an SSD Storage Pool: Create E1.S / M.2 PCIe NVMe SSD volumes to boost intensive data transfer and access performance.
• Enable SSD Caching: Install E1.S / M.2 PCIe NVMe SSDs and enable SSD caching to reduce latency and enhance random read/write efficiency (IOPS) for small files.
• Upgrade to 10GbE: Install a QXG-ES10G1T 10GbE network module for faster network connectivity.

Note: An HS-M2SSD-07 or TPAD-M2SSD-04 thermal kit (optional purchase) is recommended for optimizing M.2 PCIe NVMe SSD cooling efficiency for stable data transfer. Also, before installing a 5.9mm E1.S SSD, please remove the built-in E1.S to M.2 SSD adapter from the slot. Lastly, before installing a 9.5/15mm E1.S SSD, please purchase the TRAY-E1S-01 drive tray for installation.

In modern business IT, a NAS with only 1GbE is a performance bottleneck. The TS-h765eU comes with faster network connectivity which enables businesses to facilitate bandwidth-demanding applications, such as large file access, backup/restore, virtualization, and more.

• Built-in 2.5 GbE: The TS-h765eU comes with two 2.5GbE ports, outperforming similar competitor NAS that only provides 1GbE.
• Upgradable to 10GbE: You can install up to two QXG-ES10G1T E1.S to single 10GbE network modules via the E1.S / M.2 PCIe NVMe slots.
• Enhance Overall Bandwidth: Obtain increased network speed and fault tolerance by configuring Port Trunking.

Designed for enterprises, the QuTS hero operating system adopts the highly reliable ZFS file system to provide utmost data integrity and stability for mission-critical storage. QuTS hero further optimizes SSD performance and endurance to meet businesses' stringent demands for performance and reliability.

• Automatic Repair of Corrupted Data: ZFS supports self-healing for silent data corruption, automatically detecting damaged data to ensure data integrity.
• Data Immutability: Enable WORM (Write Once, Read Many) to prevent written data from being overwritten, modified, or deleted, effectively mitigating ransomware threats.
• ZIL (ZFS Intent Log) protects against potential data corruption caused by power failure by safeguarding unwritten data.
• Inline data deduplication reduces storage consumption for maintaining optimal disk capacity.
• Prevent Simultaneous SSD Failure: The patented QSAL algorithm automatically and regularly detects RAID-level SSD lifespan to prevent simultaneous SSD failure, avoiding RAID crashes and data loss.

The TS-h765eU supports various apps that cover all your backup needs.

• NAS/File Server: Supports multiple protocols such as Rsync, FTP and CIFS/SMB for backing up different file servers.
• Cloud: Back up NAS data to/from major cloud services, including QNAP's myQNAPcloud Storage.
• Mac: Set a QNAP NAS as Time Machine backup destination.
• Windows PC/Server: Back up full PC/server systems and manage all backups from multiple devices through a single interface.
• VM: Back up VMware vSphere and Microsoft Hyper-V with dramatically lower costs than others.
• Google Workspace/Microsoft 365: Use QNAP's Boxafe to back up, recover, and manage the data of 10,000+ users over multiple Google Workspace and Microsoft 365.
• WordPress: Backup, restore, or migrate your WordPress site. QNAP NAS can also host a website.
• Google Photos: Migrate archive photos to a QNAP NAS and free up your Google Photos spaces.

By supporting secondary backup, replication, or restore in a single interface, QNAP makes your business Disaster Recovery (DR) quick, easy, and effective.

• NAS and File Server: Use the same interface to configure and run backup, replication, and restore jobs.
• Cloud: Supports advanced technologies to save backup time, spaces, and effort.
• myQNAPcloud Storage: QNAP-hosted cloud storage that only charges for storage space, with transmitting data being completely free.

Whether you're in the office or on the go, you can access the latest files synchronized to TS-h765eU on multiple devices for efficient teamwork. Version Control keeps track of document changes, simplifying file management and restoration.

• Cross-Device Sync: Sync NAS files across multiple devices, including desktops, laptops, tablets, and phones.
• Custom Sync Rules: Set rules for automatic file sync and conflict resolution.
• Team Folders: Share folders with specific teams for collaborative file management.

• AI-Driven Semantic Search for Images: Use intuitive descriptions and simple-language prompts to find desired images fast. For example, a dog playing on the beach.
• Full-Text Search: Qsirch searches for files based on file name, content, title, metadata, email title and body text, file path, and more.
• Image Search: Search for images by color or object. AI OCR recognizes and enables capturing text from images.
• Document Preview: Preview content of unopened documents, view keyword-relevant paragraphs, and check out a few relevant sentences related to the file subject.
• At-a-Glance File Distribution: Stay informed of storage utilization and distribution of data and files stored on the TS-h765eU via charts and analytics.

Bolster business data security with resilience from all aspects.

• Enterprise Private Network Connection: Build secure VPN connection using QVPN Service. Multi-site organizations can leverage QuWAN SD-WAN to quickly set up Mesh VPN for remote workers and branches.
• Filtering Unauthorized Access: Implement QuFirewall to allow/deny specific IP addresses and regions, preventing unauthorized access and cyber threats.

• Efficient NAS User Management: The TS-
