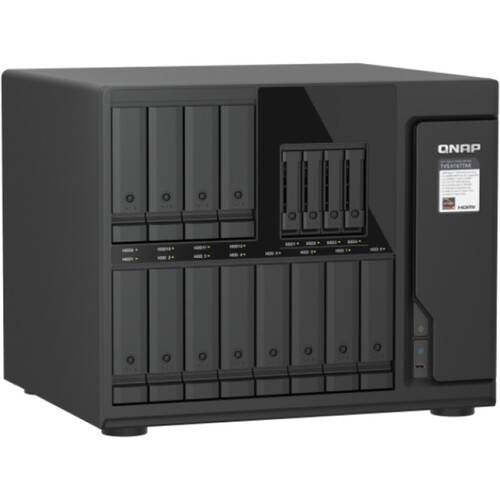

QNAP TS-h1677AX 16-Bay NAS Enclosure

Powered by a 3.8 GHz AMD Ryzen 5 PRO 7645 processor, the TS-h1677AX 16-Bay NAS Enclosure from QNAP combines ZFS data integrity with Qtier storage tiering technology. It redefines performance standards for professional video collaboration and enterprise virtualization. The TS-h1677AX is equipped with 16GB of DDR5 RAM, allowing it to handle heavy workloads, including multiple virtual machines, containers, and high resolution video transcoding.

The TS-h1677AX has twelve 3.5/2.5" SATA III drive bays, four 2.5" U.2 NVMe drive bays that support PCIe 4.0 and 5.0 SSDs, a tower form factor, two 10GbE RJ45 ports, and two 2.5GbE RJ45 ports. Peripherals and external storage drives may be added using the two 10 Gb/s USB-C 3.2 Gen 2 ports, two 480 Mb/s USB 2.0 ports, and one HDMI 1.4b port. Expansions, including graphics cards, additional network cards, and more may be installed into the PCIe 4.0 x8 and PCIe 4.0 x4 expansion slots.

Adopting the latest Zen 4 architecture, the TVS-h1677AX provides a significant IPC uplift. Combined with DDR5 memory (expandable up to 192GB), it effortlessly handles heavy workloads, including multiple virtual machines (VMs), containers, and high-resolution video transcoding.

Maximize your storage efficiency without compromise. The TVS-h1677AX features hybrid bays that support both U.2 NVMe SSDs and traditional HDDs, allowing you to combine the speed of NVMe with the capacity of hard drives.

The TVS-h1677AX is powered by a 3.8 GHz AMD Ryzen 5 PRO 7645 6-Core processor (Zen 4 architecture), delivering exceptional multitasking performance and energy efficiency. Combined with up to 192GB of DDR5 memory and 3 x 25GbE SmartNIC, it achieves outstanding sequential throughput and random IOPS for demanding enterprise workloads.

6 x 25GbE SMB Sequential Throughput (1M)

Read speeds up to 12,174 MB/s and write speeds up to 11,065 MB/s

6 x 25GbE iSCSI Random IOPS (4KB)

Read speeds up to 1,140,212 IOPS and write speeds up to 782,483 IOPS

Maximize storage efficiency. Move active data to high-performance SSDs and cold data to high-capacity HDDs.

Eliminate CPU bottlenecks. NFS over RDMA transfers data directly between memory, delivering local NVMe-like responsiveness to your workstation.

The TVS-h1677AX is equipped with three PCIe Gen 4 slots, enabling you to install 25GbE network cards or dedicated NVIDIA RTX GPU cards for AI inference and virtual machine GPU passthrough.

• Slot 1: PCIe Gen 4 x4
• Slot 2: PCIe Gen 4 x8 (or x4)
• Slot 3: PCIe Gen 4 x4

Note: Slot 2 provides PCIe Gen 4 x8 width when Slot 1 is not in use.

With no additional fees, you can run multiple VMs of different OS on TVS-h1677AX. This allows you to deploy multi-tenant environments and applications to increase management efficiency and save hardware costs.

VMs

Securely run Windows, Linux, UNIX, or QuTScloud VMs using Virtualization Station. Simply plug in a keyboard, mouse, and HDMI display to use the VM like a normal PC.

Containers

Run Docker, LXD, and Kata Containers and download Container apps using Container Station.

VM High Availability

VM Live Migration and HA (High Availability) guarantee continuous operation and minimal downtime.

Network & Virtual Switch

Flexibly allocate virtual network resources and configure VLANs to ensure virtual services via the virtual network topology in Network & Virtual Switch.

Avoid unplanned downtime and data loss. Create an HA cluster with two TVS-h1677AX units - one as the active server, and the other as the passive server. If an unexpected failure or issue with the active server occurs, the passive server provides immediate protection with automatic failover. This ensures continuous storage service and system availability.

Easy Management and Monitoring

Use the High Availability Manager app to easily configure, remove, or rebuild clusters.

Guaranteed Data Consistency

Real-time data sync between active and passive servers minimizes the risk of data loss (RPO).

Ensured Continuity of Critical Business

The passive server takes over within 1 minute if the active server fails (RTO < 60 sec).

Build a Smart Knowledge Hub with RAG Search

The TVS-h1677AX integrates the Qsirch search engine with RAG technology, cloud-based large language models (LLMs), and generative AI. This enables precise natural language searches across vast NAS file content, while generating summaries and actionable insights.

Full-Text Search

Searches for files based on file name, content, title, metadata, email title and body text, file path, and more.

Document Preview

Preview the content of unopened documents, view keyword-relevant paragraphs, and check out a few relevant sentences related to the file subject.

Image Search

Search for images by color or object. AI OCR recognizes and enables capturing text from images.

At-a-Glance File Distribution

Stay informed of storage utilization and distribution of data and files stored on the TVS-h1677AX via charts and analytics.
