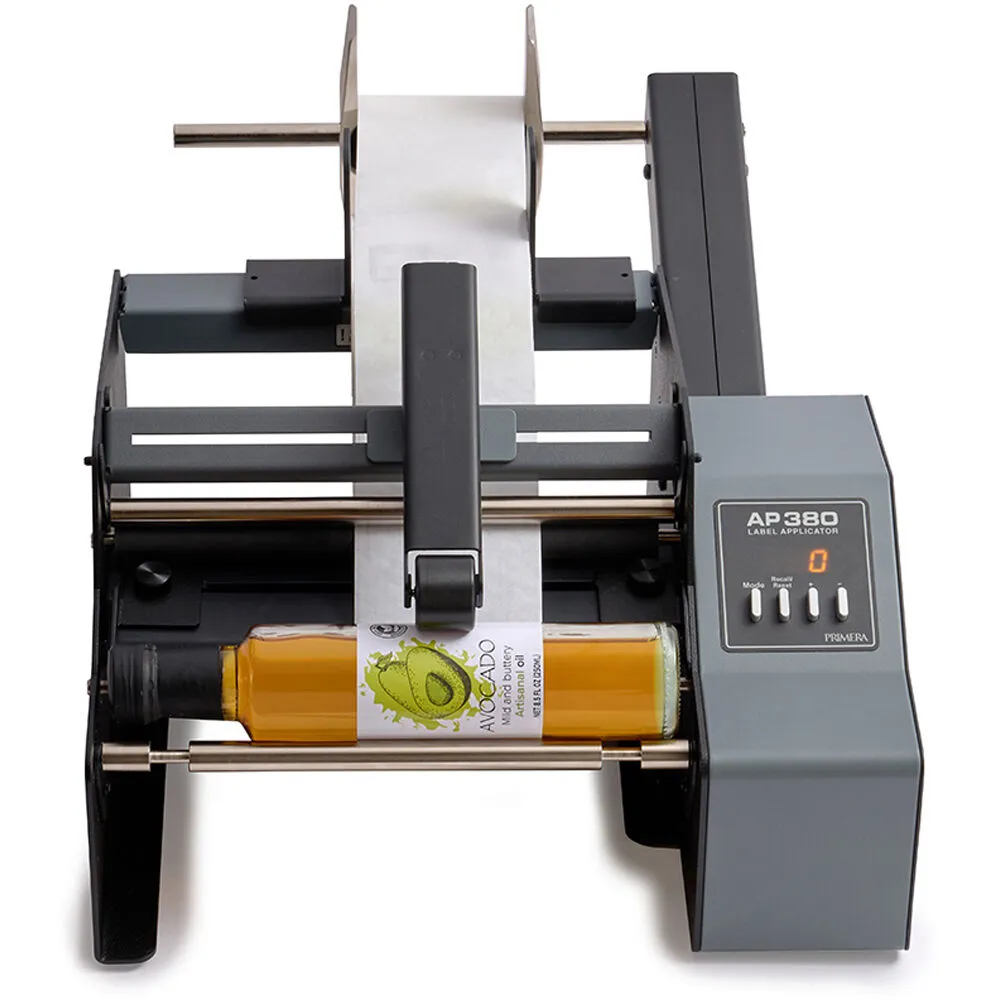

Primera AP380 Label Applicator

### From Manufacturer

Primera AP380 Label Applicator - 30% Faster Than Previous Models

Primera AP380 Applicator Assembly and Liner Rewinder Setup (Updated)

Apply labels in record time with the AP380 Label Applicator from Primera and get more products out the door. Featuring the ability to apply front and rear labels simultaneously, the AP380 is able to apply up to 1500 labels per hour to cylindrical bottles and cans.

The built-in spring-loaded pressure arm makes sure labels are applied firmly and without wrinkles. Apply one or two different labels to a single container and keep track of your volume with a built-in LED counter. The AP380 features a built-in liner rewinder which improves labeling speed for efficient application plus five container roller locations to provide an ideal position for every container.

Container Width: 1 to 9.4"

Container Diameter: 0.6 to 6.7"

Container Shape: Cylindrical and many tapered

Supply Roll Diameter: Up to 8"

Media Liner Width: 1 to 8.375"

Supply Roll Core: 2 to 3" I.D.

Gap between Labels: Recommended: 1/8 to 1/4"

Label Type: Die cut with waste removed. Clear labels can be used. Labels digitally die-cut on the LX610 are not compatible because the waste is not removed.

Liner Thickness: 2 to 10 mil (smoothness will affect feeding: a liner that is too slippery or too thin will slip through the drive rollers)

Label + Adhesive Thickness: 5 to 15 mil

Wind Direction: Wound out
