PreSonus StudioLive 64S Series III 64-Channel Digital Mixing Console with 16 x 8 Stagebox, Rackmount Ears, and Network Cables

All Non-USD currency amounts shown are estimates, provided for general information purposes only. The final amount will be charged in US dollars.

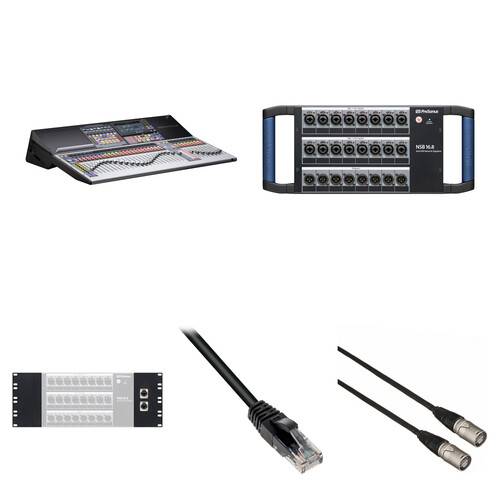

Great for recording studios and installed live mixing scenarios, this Fotohaus Klinger Kit combines the PreSonus StudioLive 64S Series III 64-Channel Digital Mixing Console with a 16 x 8 AVB-networked stage box, a Cat 6 patch cable, and an etherCON cable, to create a turnkey system for all mixing and recording applications.

TheStudioLive 64S is a 64-channel mixer that brings the power of a large-format console to small-format digital mixing. Powered by the quad-core PreSonus FLEX DSP Engine, the StudioLive 64S digital mixer is equipped with 76 mixing channels, 43 mix buses, and 526 simultaneous processors. The mixer features an integrated hardware and software system with a full-color touchscreen, 33 touch-sensitive, motorized faders and 32 recallable XMAX preamps. The powerful quad-core FLEX DSP engine supercharges the mixer with Fat Channel vintage-style EQs and compressors on every channel, plus an eight-slot FLEX FX processor that can run heralded digital reverbs and delays. Streamline your workflow with recallable scene presets, virtual sound check, and the supplied software library, which empowers you with remote control from a computer or iPad, remote monitor mixing using a mobile device, and all the software you need to track, edit, mix, and distribute your music.

The StudioLive 64S boasts 32 mic/line inputs via XLR-1/4" combo jacks. Additional inputs include four 1/4" aux inputs and a dedicated XLR talkback mic input with phantom power. The mixer provides stereo XLR main outputs, a balanced XLR mono output that can be incorporated for a true LCR setup, 16 analog FlexMix outputs on XLR jacks, a pair of 1/4" monitor outputs, and a 1/4" headphone port. A digital AES/EBU output of the main mix is available via a rear-panel XLR socket. Additionally, unbalanced stereo RCA tape inputs and outputs are on hand for hookup of a house music source and a separate stereo recorder. Alternatively, you can wirelessly stream music from a mobile device to the mixer's built-in Bluetooth receiver. Record 32 channels and the main stereo mix to a Class 10 U3 SD card (available separately) via the onboard 34-track SD recorder, or stream 128 channels (64 in each direction) over USB 2.0 to and from your computer. You can even record redundantly to an SD card and a USB host computer at the same time. Take advantage of the built-in AVB networking capabilities for flexible system expansion, digital patching between networked devices, and more.

PreSonus Metro is the latest innovation for StudioLive Series III mixers, delivering a first-to-market solution for live remote mixing over the Internet with high-quality low-latency audio streaming. With Metro, anyone anywhere in the world can connect to a StudioLive Series III mixer over the Internet and remote control the mixer using UC Surface while listening in real time with their local audio device. For existing customers, a free firmware update with Metro is available from the PreSonus website.

Designed to work seamlessly with PreSonus StudioLive Series III mixers, the PreSonus NSB 16.8 stage box offers 16 locking combo mic/line inputs with remote-controlled XMAX preamps that include gain compensation for shared input scenarios, as well as 16 direct inputs via AVB. All inputs can be controlled from a StudioLive Series III console and from free PreSonus UC Surface software.

All eight outputs employ locking XLR jacks, while the built-in 2-port AVB switch lets you daisy-chain multiple units. The rugged steel chassis with sturdy handles is designed with a stage box form factor and allows the NSB 16.8 to sit well on the stage and survive the rigors of on-the-road wear and tear. The unit can be rackmounted with an optional rack-ear kit.

The PreSonus NSB 16.8 Rackmount Kit allows you to install your NSB 16.8 AVB network stagebox into a standard 19" rack mount enclosure. The kit includes two blank panels, two Ethernet cables, and mounting screws. One panel features two Ethercon jacks, which once connected with the included Ethernet cables, provides access to the AVB network ports from the front panel.
