PreSonus StudioLive 32S Series III S 32-Channel Digital Mixer Kit with 32x16 Stage Box, Rackmount Brackets, and Network Cables

All Non-USD currency amounts shown are estimates, provided for general information purposes only. The final amount will be charged in US dollars.

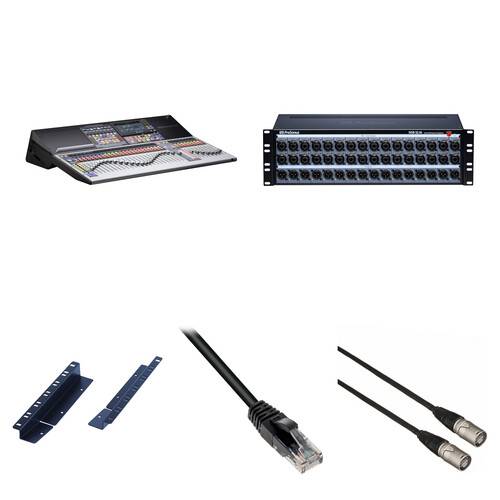

Great for recording studios and installed live mixing scenarios, this Fotohaus Klinger Kit combines the PreSonus StudioLive 32S Series III S 32-Channel Digital Mixing Console with the NSB 32.16 AVB-Networked 32x16 stage box, a console rackmount kit, a Cat 6 patch cable, and an etherCON cable to create a turnkey system for all mixing and recording applications.

The StudioLive 32S is a powerful 32-channel mixer that provides the ultimate mixing experience, packing large-format features into a small-format chassis. Powered by the dual-core PreSonus FLEX DSP Engine, the StudioLive 32S digital mixer is equipped with 40 mixing channels, 26 mix buses, and 286 simultaneous processors. The mixer features an integrated hardware and software system with a full-color touchscreen, 33 touch-sensitive, motorized faders and 32 recallable XMAX preamps. The powerful dual-core FLEX DSP engine supercharges the mixer with Fat Channel vintage-style EQs and compressors on every channel, plus a four-slot FLEX FX processor that can run heralded digital reverbs and delays. Streamline your workflow with recallable scene presets, virtual sound check, and the supplied software library, which empowers you with remote control from a computer or iPad, remote monitor mixing using a mobile device, and all the software you need to track, edit, mix, and distribute your music.

The StudioLive 32S boasts 16 XLR mic inputs and 16 mic/line inputs via XLR-1/4" combo jacks. Additional inputs include four 1/4" aux inputs and a dedicated XLR talkback mic input with phantom power. The mixer provides a balanced XLR mono output, stereo XLR main outputs, 16 analog FlexMix outputs (12 XLR, four 1/4" TRS), a pair of 1/4" monitor outputs, and a 1/4" headphone port. A digital AES/EBU output of the main mix is available via a rear-panel XLR socket. Additionally, unbalanced stereo RCA tape inputs and outputs are on hand for hooking up a house music source and a separate stereo recorder. Alternatively, you can wirelessly stream music from a mobile device to the mixer's built-in Bluetooth receiver. Record 40 channels and the main stereo mix to a Class 10 U3 SD card (available separately) via the onboard 34-track SD recorder, or stream 128 channels (64 in each direction) over USB 2.0 to and from your computer. You can even record redundantly to an SD card and a USB host computer at the same time. Take advantage of the built-in AVB networking capabilities for flexible system expansion, digital patching between networked devices, and more.

PreSonus Metro is the latest innovation for StudioLive Series III mixers, delivering a first-to-market solution for live remote mixing over the Internet with high-quality low-latency audio streaming. With Metro, anyone anywhere in the world can connect to a StudioLive Series III mixer over the Internet and remotely control the mixer using UC Surface while listening in real time with their local audio device. For existing customers, a free firmware update with Metro is available from the PreSonus website.

Designed to work seamlessly with a PreSonus StudioLive Series III mixer, the PreSonus NSB 32.16 stage box offers 32 locking combo mic/line inputs with remote-controlled XMAX preamps that include gain compensation for shared input scenarios, as well as 32 direct inputs via AVB. All inputs can be controlled from a StudioLive Series III console and from free PreSonus UC Surface software.

All 16 outputs employ locking XLR jacks, while the built-in 2-port AVB switch lets you daisy-chain multiple units. A pair of AES XLR outputs are available on the rear of the enclosure. The rugged 3 RU steel chassis features rack ears for easy installation into a rack case.

The PreSonus Series III Rackmount Kit allows you to rackmount any StudioLive Series III console, including the 16, 24, and 32 channel versions. The 6-RU rack ears attach to the side of the console with the included mounting screws. A minimum depth of 23" (14 RU) should be allowed for installation.
