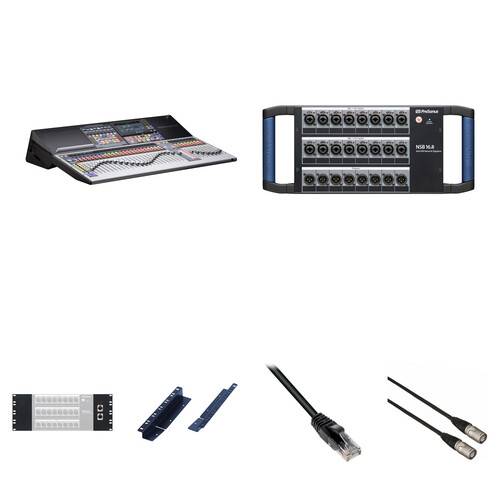

PreSonus StudioLive 32S Series III S 32-Channel Digital Mixer Kit with 16x8 Stage Box, Rackmount Ears, and Network Cables

Great for recording studios and installed live mixing scenarios, this Fotohaus Klinger Kit combines the PreSonus StudioLive 32S Series III S 32-Channel Digital Mixing Console with the 16x8 AVB-networked stage box, a console rackmount kit, a stage box rackmount kit, a Cat 6 patch cable, and a Cat 5e RJ45 etherCON cable, to create a turnkey system for all mixing and recording applications.

The StudioLive 32S is a powerful 32-channel mixer that provides the ultimate mixing experience, packing large-format features into a small-format chassis. Powered by the dual-core PreSonus FLEX DSP Engine, the StudioLive 32S digital mixer is equipped with 40 mixing channels, 26 mix buses, and 286 simultaneous processors. The mixer features an integrated hardware and software system with a full-color touchscreen, 33 touch-sensitive, motorized faders and 32 recallable XMAX preamps. The powerful dual-core FLEX DSP engine supercharges the mixer with Fat Channel vintage-style EQs and compressors on every channel, plus a four-slot FLEX FX processor that can run heralded digital reverbs and delays. Streamline your workflow with recallable scene presets, virtual sound check, and the supplied software library, which empowers you with remote control from a computer or iPad, remote monitor mixing using a mobile device, and all the software you need to track, edit, mix, and distribute your music.

The StudioLive 32S boasts 16 XLR mic inputs and 16 mic/line inputs via XLR-1/4" combo jacks. Additional inputs include four 1/4" aux inputs and a dedicated XLR talkback mic input with phantom power. The mixer provides a balanced XLR mono output, stereo XLR main outputs, 16 analog FlexMix outputs (12 XLR, four 1/4" TRS), a pair of 1/4" monitor outputs, and a 1/4" headphone port. A digital AES/EBU output of the main mix is available via a rear-panel XLR socket. Additionally, unbalanced stereo RCA tape inputs and outputs are on hand for hooking up a house music source and a separate stereo recorder. Alternatively, you can wirelessly stream music from a mobile device to the mixer's built-in Bluetooth receiver. Record 40 channels and the main stereo mix to a Class 10 U3 SD card (available separately) via the onboard 34-track SD recorder, or stream 128 channels (64 in each direction) over USB 2.0 to and from your computer. You can even record redundantly to an SD card and a USB host computer at the same time. Take advantage of the built-in AVB networking capabilities for flexible system expansion, digital patching between networked devices, and more.

PreSonus Metro is the latest innovation for StudioLive Series III mixers, delivering a first-to-market solution for live remote mixing over the Internet with high-quality low-latency audio streaming. With Metro, anyone anywhere in the world can connect to a StudioLive Series III mixer over the Internet and remotely control the mixer using UC Surface while listening in real time with their local audio device. For existing customers, a free firmware update with Metro is available from the PreSonus website.

Designed to work seamlessly with PreSonus StudioLive Series III mixers, the PreSonus NSB 16.8 stage box offers 16 locking combo mic/line inputs with remote-controlled XMAX preamps that include gain compensation for shared input scenarios, as well as 16 direct inputs via AVB. All inputs can be controlled from a StudioLive Series III console and from free PreSonus UC Surface software.

All eight outputs employ locking XLR jacks, while the built-in 2-port AVB switch lets you daisy-chain multiple units. The rugged steel chassis with sturdy handles is designed with a stage box form factor and allows the NSB 16.8 to sit well on the stage and survive the rigors of on-the-road wear and tear. The unit can be rackmounted with an optional rack-ear kit.

The PreSonus NSB 16.8 Rackmount Kit allows you to install your NSB 16.8 AVB network stagebox into a standard 19" rack mount enclosure. The kit includes two blank panels, two Ethernet cables, and mounting screws. One panel features two Ethercon jacks, which once connected with the included Ethernet cables, provides access to the AVB network ports from the front panel.

The PreSonus Series III Rackmount Kit allows you to rackmount any StudioLive Series III console, including the 16, 24, and 32 channel versions. The 6-RU rack ears attach to the side of the console with the included mounting screws. A minimum depth of 23" (14 RU) should be allowed for installation.
