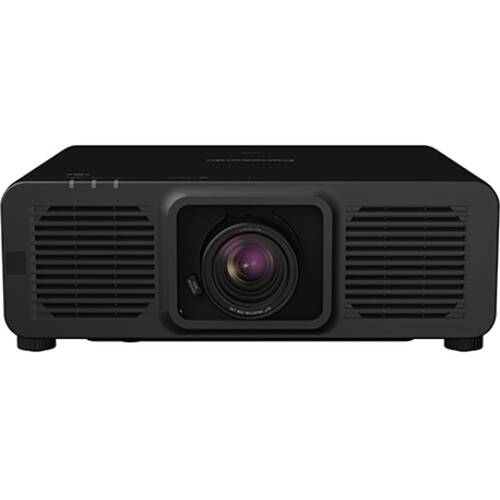

Panasonic PT-RQ7L 7500-Lumen Pixel Shift 4K DLP Laser Projector (No Lens, Black)

Create engaging 4K video presentations with the Panasonic PT-RQ7L 7500-Lumen Pixel Shift 4K DLP Laser Projector. Featuring a more compact and lightweight design than previous, similar models, the PT-RQ7L is designed to tackle a wide-range of uses including museum, education, corporate environments.

Connect devices via HDMI or RJ45 Digital Link and project up to 4K resolution with Panasonic's Quad Pixel Drive. This integrator friendly projector comes equipped with RS-232 and LAN network protocol control, IP5X dust protection, 360° installation support, and a host of professional features and settings, making it well suited to demanding and complex scenarios including projection mapping and multi-projector installations.

Panasonic's Quad Pixel Drive creates smooth 4K images without visible pixels or gridding, ideal for immersive 360° mapping attractions. Settings for Dynamic Contrast, Rich Color Enhancer, and Digital Art Mode help bring out the realism of high-quality content. Additionally, you can project 1080p video at 240 Hz and, with the ET-SWR10 kit (sold separately), seamlessly blend content and motion in real-time.

At just 36.59 lb and about 29% smaller than the previous RZ690 model, the RQ6 Series seeks to ease the logistical burden by reducing the footprint and being able to be carried by one person. Furthermore, optional function boards for the Intel SDM standard-compatible SLOT, including Panasonic's ET-SBFMP10 (sold separately) media processor, simplify complex layouts.

The energy-efficient optical engine and light-source module comply with the IP5X Dust Protected (IEC 60529) standard, while a filter-less design contributes to 20,000 hours of maintenance-free operation. Other aspects include using plastic parts containing about 73% recycled resins and an Eco Boost mode that maintains perceived brightness while reducing energy consumption.

The RQ6 Series is compatible with Panasonic’s DLE Series projection lenses, offering versatility for diverse production layouts and making the transition to 4K more cost-effective for businesses with existing lens inventories. The projector’s strengthened lens mounter now supports the ET-DLE020G/ET-DLE020 Ultra-Short-Throw Zoom Lens without requiring a bracket, streamlining installation. These lenses feature powered zoom, focus, and vertical/horizontal lens shift, conveniently controllable via remote or the Smart Projector Control app.

The RQ6 Series works with Panasonic’s ET-FMP50 Series media processors (sold separately) to simplify multi-projection complexity. The processors, which comprise box-type and function board-type for the projector's Intel SDM standard-compatible SLOT, feature automatic camera-based warping/blending and 4K media playback capabilities. Compatible cameras (sold separately) comprise NIKON D5200/D5300/D5500/D5600/D7500/Z50.

Smart Projector Control app lets you control up to 64 projectors from your phone or tablet. It enables projector setting adjustment from your device, which is useful when OSD menu projection isn’t possible. Other functions include test pattern selection, shutter control, Web Control UI access, lens settings adjustment, brightness locking, and focus adjustment via the device camera from distances of up to 98 ft. The app enables swift connection to the projector via QR Code scanning, eliminating password/SSID entry.

The RQ6 Series offers built-in geometric adjustment tools, including a point-based Free Grid function to correct localized screen distortion. It ships with preactivated upgrade kit licenses for Geo Pro software. These comprise the ET-UK20 Geometry Manager Pro Software Upgrade Kit, which expands functionality and adds sophisticated line, shape, and bitmap masking tools, and the ET-CUK10 Auto Screen Adjustment Upgrade Kit, which automates edge-blending including brightness, color, and black level adjustment via a compatible camera.

• Multi-projector contrast sync via LAN
• Shutter timing of all sub-projectors is synchronized with the main projector via the LAN
• 10x built-in test patterns or import your own
• Built-in gyro sensor detects pitch and roll and displays via onscreen GUI
• Updated web control user interface
• Backup input redundancy
• Multi laser drive with Failover circuitry
• Supports Art-Net DMX, PJLink, Crestron Connected V2,Crestron XiO Cloud, and Extron XTP
• DICOM simulation mode
• Waveform monitor function
