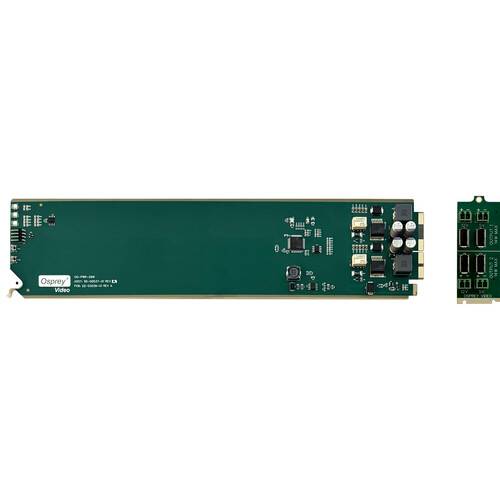

Osprey OG-PWR-28W Dual-Channel 5/12V Redundant Power Distribution Card

Distribute power to monitors, switchers, encoders, decoders, and accessories with this OG-PWR-28W Dual Channel 5/12V Redundant Power Distribution Card from Osprey. This distribution amplifier card is designed to take up one slot in an openGear OGx or OG3 frame with redundant power, and it includes a rear module that takes up two slots.

There are two 14.4W outputs for a total card output of 28.8W. Each output consists of a 12V 2-pin terminal, a 5V 2-pin terminal, and two 5V USB-A connectors.

Output 1: 10W (2A) max shared between all 5V outputs or 14.4W (1.2A) max on 12V output

Output 2: 10W (2A) max shared between all 5V outputs or 14.4W (1.2A) max on 12V output

NOTE: 5V and 12V outputs can be used simultaneously, but the total combined 5/12V output power is 14.4W where 5V cannot exceed 10W.
