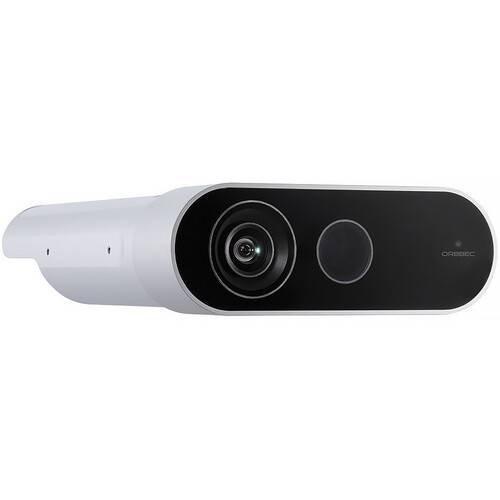

Orbbec Femto Mega Depth Camera

The Femto Mega Depth Camera from Orbbec is a programmable, multi-mode, industrial-grade depth, and RGB camera with real time streaming of processed images over Ethernet or USB-C 3.2 Gen 1 connectivity. It delivers resolutions of up to 3840 x 2160 at 5, 15, and 25 fps. The camera uses Microsoft's TOF technology and the NVIDIA Jetson platform to deliver a software-defined depth and RGB vision platform for computer vision and AI developers. Also featured are rolling and global shutters, wavelength sensitivity up to 850nm, and an RJ45 interface that delivers power and network connectivity. The camera may also be powered using its DC input and a separately sold power adapter.

• 1MP ToF sensor
• 4K RGB
• Processor: NVIDIA Jetson Nano
• Data interfaces: USB-C 3.2 Gen 1 and Ethernet
• Power: PoE, USB-C, and DC
• Trigger/Sync Control
• OS: Windows or Linux

• High-resolution sensor provides detailed scene understanding
• Wide field of view covers a large area
• Various operating modes for different applications

• In-camera processing of advanced depth vision algorithms
• Integrated NVIDIA Jetson Nano system-on-module for AI processing can remove need for dedicated compute
• Orbbec SDK enables easy setup and provides a rich set of APIs for integration with various applications

• Depth and RGB cameras in a single device
• Combined data and power with Power over Ethernet (PoE) or USB-C 3.2 Gen 1 connections eliminate need for multiple cables
• Can be directly connected to servers or cloud as an IoT device
• Precise synchronization trigger control uses standard Ethernet cables
