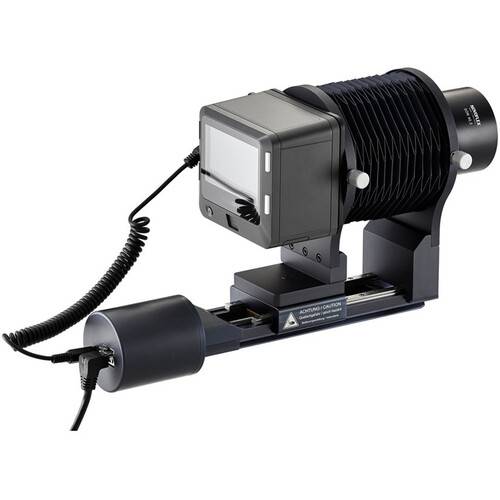

Novoflex STACKPRO 1 Universal Auto Stacking System

The STACKPRO 1 Universal Auto Stacking System from Novoflex combines motorized focus stacking with medium- and large-format optics to produce consistently sharp images from foreground to background. Designed for full-frame and medium-format camera systems, its step-motor-driven focusing rail and universal bellows enable automated focus stacking from infinity to a 1:1 reproduction ratio, while maintaining a constant perspective throughout the sequence. By allowing lenses to operate at their optimal apertures, the system minimizes diffraction and preserves fine detail and natural bokeh without sacrificing depth of field.

The system supports medium- and large-format lenses from 50 to 480mm, including Mamiya RB, Mamiya RZ, Rodenstock LF, and Schneider Kreuznach LF optics, with compatibility across Canon RF, Fujifilm G, Nikon Z, L-Mount, Phase One IQ3/IQ4, Hasselblad X, and Sony E systems through compatible adapters. A dedicated control unit operates the stepper motor via the included Cat 6 cable, while the universal bellows provides the connection between camera and lens. Designed for product, industrial, and other object photography, the STACKPRO 1 can also be expanded with the optional PROSHIFT+ adapter for controlled perspective correction.

Automated Focus Stacking

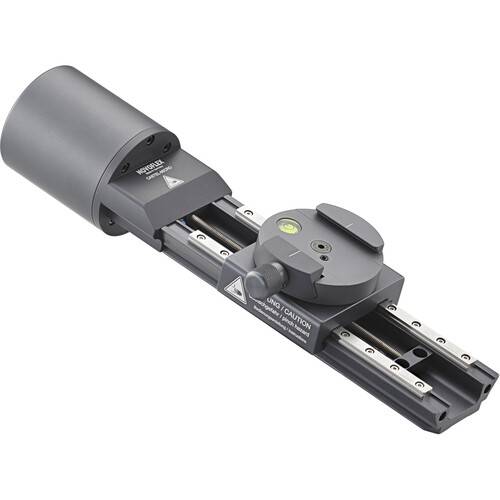

• Step-motor focusing rail automates precise focus stacking for continuous depth of field
• Focus range from infinity to 1:1 reproduction allows you to capture everything from large objects to detailed close-ups
• Maintains consistent perspective and framing throughout the stacking sequence
• Enables deep focus while allowing lenses to remain at optimal aperture

Compatibility

• Supports medium- and large-format lenses from 50 to 480mm with optional expandability using extension tubes
• Compatible with Mamiya RB, Mamiya RZ, Rodenstock LF, and Schneider Kreuznach LF optics
• Supports Canon RF, Fujifilm G, Nikon Z, L-Mount, Phase One IQ3/IQ4, Hasselblad X, and Sony E systems with appropriate adapters
• Optional PROSHIFT+ adapter adds shift control for correcting converging lines in architectural and industrial applications

Design

• Universal bellows attachment connects the camera and lens while accommodating system-specific adapters

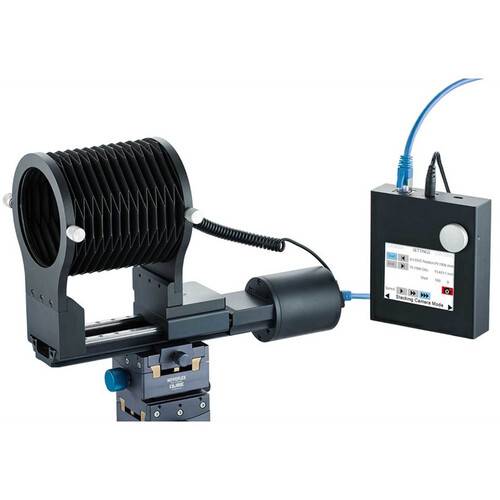

• Control unit with dedicated shutter-release output and RJ45 connections provides automated operation

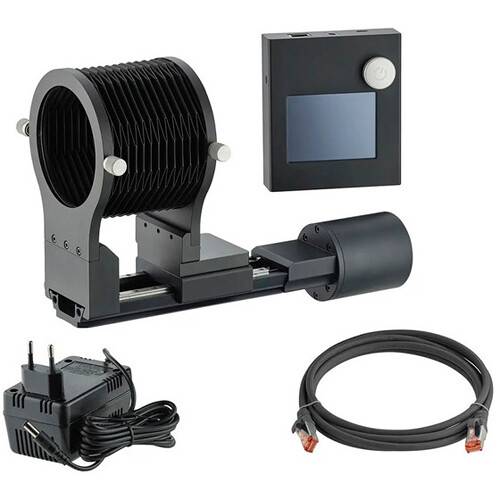

• Includes step-motor focusing rail, universal bellows, control unit, Cat 6 patch cable, and power supply

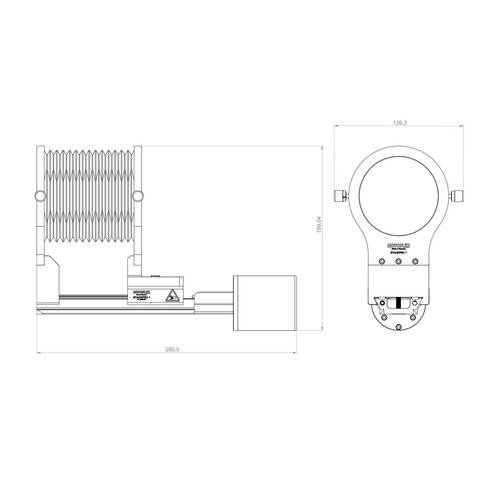

• Measures 16.5 x 12.5 x 6” and weighs 11 lb for a professional, studio-oriented setup

EAN: 4030432419305
