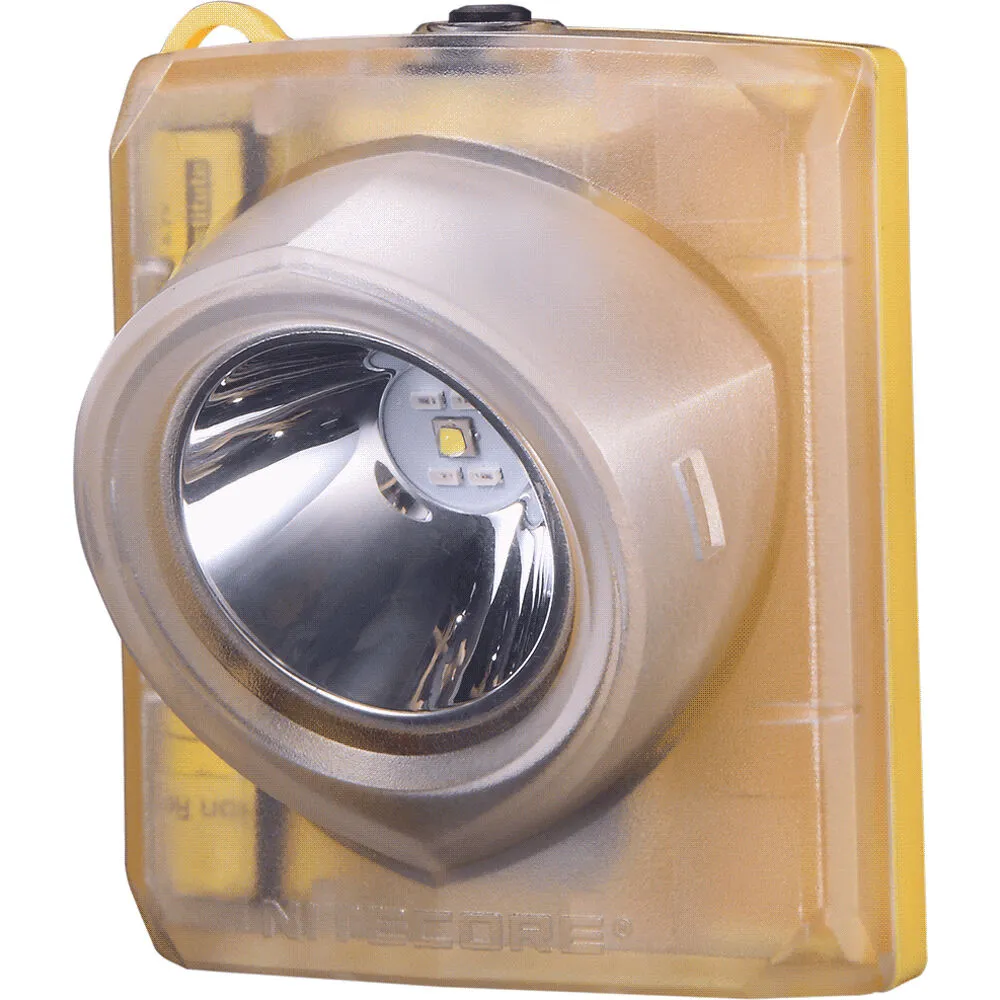

Nitecore EH1S LED Headlight

Engineered and purpose-built for high risk industries such as mining, off-shore and underground oil exploration, and the petrochemical and chemical industries, Nitecore's EH1S LED Headlight runs on one factory-installed 18650 battery that power the primary CREE XP-G2 S3 LED to produce three white-light outputs from a low of 22 lumens up to a max of 260 lumens. Four secondary red LEDs can be used to perform tasks while protecting night or dark-adjusted vision. The red LEDs also have two special strobe modes for increased safety. In the event the user is incapacitated, an SOS distress signal can be activated to automatically cycle through the Morse code sequence, or a location beacon can be used to signal where they are. An intuitive single pushbutton interface makes it easy to use.

Since the housing is sealed at the factory, the EH1S is able to maintain an IP68 rating to be dust and waterproof as well as submersible to 10 feet. To charge the battery, Nitecore employs a magnetic charging system that eliminates the need for an open charging port to keep water, dust, and chemicals out. Their Advanced Temperature Regulation (ATR) technology monitors the internal temperature and automatically steps down the output to prevent damage due to excessive heat.

Light Performance

• Low: 22 lumens
• Med: 65 lumens
• High: 260 lumens
• One primary CREE XP-G2 S3 LED
• Four secondary red LEDs
• Specialty strobe modes:
• Utilizes secondary red LEDs for use in low-light conditions
• Red light won't affect night/dark-adjusted vision
• SOS beacon: Automatically repeats Morse code sequence
• Location beacon: Emits a flash at regular intervals to show location while maximizing battery life

Switching

• Type: Push button
• Location: Top of housing
• Constant-on activation only
• Single button used to access all intensity levels and strobe modes

Construction Details

• Rated for high-risk occupations:
• Mining
• Underground and off-shore petroleum exploration
• Petrochemical and chemical industries
• Rated for temperatures up to 212°F (100°C)

• Temperature, impact, and chemical-resistant polycarbonate housing
• IP68-rated
• Dust and waterproof
• Submersible to 10 feet
• Factory-sealed to maintain IP rating
• Impact resistant to 6 feet
• Adhesive mount and helmet mount included
• Weight: 5.3 ounces

Electronics

• Runs on one factory-installed 18650 battery
• Magnetic charging system:
• Charges battery in the housing
• Eliminates the need for an open charging port for increased dust and waterproofing

• Integrated power indicator: The number of red lights illuminated show available battery power
• Advanced Temperature Regulation (ATR) technology:
• Monitors internal temperature and steps down output to prevent damage due excessive heat

EAN: 6952506402083
