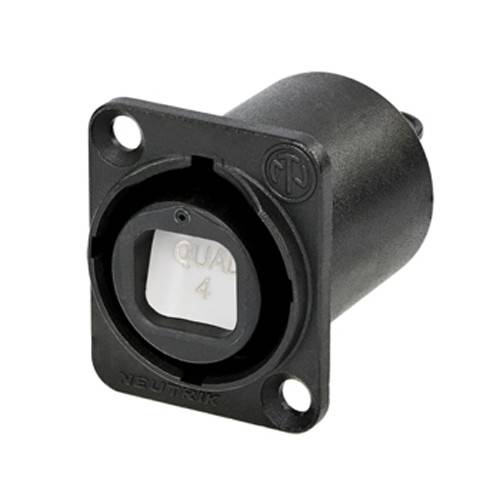

Neutrik NO4FDW-A Multi-Mode opticalCON Female Quad Chassis Connector (Black)

This black NO4FDW-A Multi-Mode opticalCON Female Quad Chassis Connector from Neutrik is installed in the front panel of your networking equipment to secure LC cables. This connector comes with black chromium plating, 4 solder contacts, and an LC feed-through socket, which simplifies LC installations in the rear.

Neutrik has built the connector with a standard D-shape shell with a push-pull locking mechanism. It features an automatic sealing cover for maximum dust and dirt protection as well as a waterproof rating of IP65. In addition, colored sealings are included to identify the fiber mode (this connector is coded black for multi-mode).

Key Features

Rugged 4-channel point-to-point multichannel routing solution

IP65 ingress protection in mated condition with SCDP-*

Laser-protected metal shutter seals dust proof with two-component rubber gasket

Accommodates standard LC connectors on the rear for simple installation

Color coding with SCDP-* according to ANSI/TIA-568.3-D Standard

Standard D-size shell

Push-pull locking mechanism

Color coding with SCDP-* according to ANSI/TIA-568.3-D standard:

Multi-mode: Black (this connector)

Single-mode PC: Blue

Single-mode APC: Green

EAN: 7613187007828
