MSolutions MS-210WP HDBaseT Wall Plate Extender Set

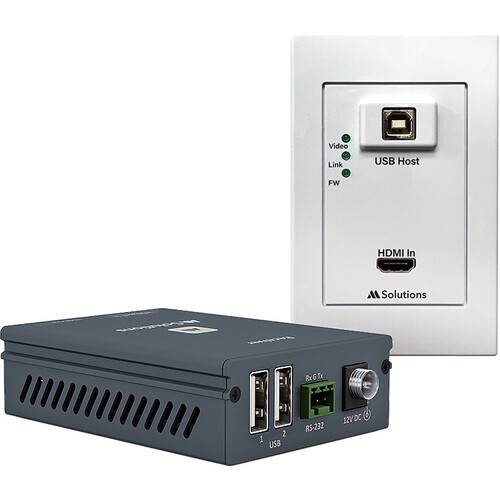

The MS-210WP HDBaseT Wall Plate Extender Set from MSolutions features an HDBaseT receiver unit and a US one-gang, decora-style wall-plate transmitter unit to extend your video signals. The set can transmit DCI 4K up to 131' and 1080p up to 230' via a single Cat cable. The transmitter unit features one HDMI input and one input with HDBaseT. The receiver unit features two USB outputs and one RS-232 port serial pass-through.

Uncompressed extension of HDMI at resolutions up to 4K60 4:2:0/4K3 4:4:4 using HDBaseT technology

Over a single Cat cable, 4K signal up to 131' (including HDR formats supported under 10.2 Gb/s) and 1080p or lower video resolutions up to 230'

Supports HDMI pass-through of all known HDMI audio formats, including Dolby Atmos/DTS:X

Allows EDID manipulation (needs factory preconfiguring)

Power to the wall plate from the receiver side for easy connectivity

HDCP 2.2 compliant

CEC (Consumer Electronics Control) pass-through

Bidirectional RS-232 serial pass-through

Flexible USB extension for USB 2.0 cameras, touchscreens, smart boards, hard drives, game controllers, USB audio devices, printers, scanners, and HIDs (mouse or keyboard)

One-gang enclosure for Decora-style wall plate openings

Two USB 2.0 channels for KVM connectivity of USB devices across the link with a max 200 Mb/s data rate pass-through
