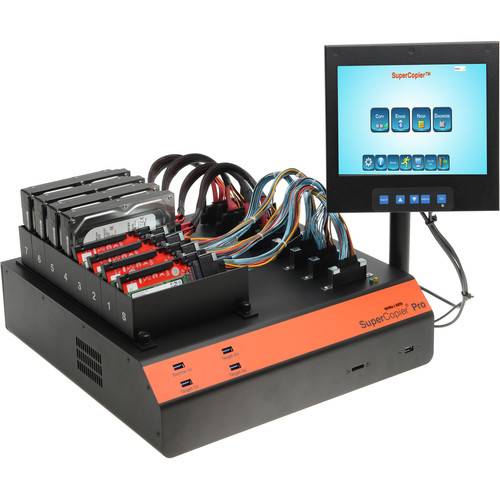

MediaClone SuperCopier Desktop Drive Duplicator with 4 x NVMe & 4 x SAS/SATA Ports

The SuperCopier Desktop Drive Duplicator with 4 x NVMe & 4 x SAS/SATA Ports from MediaClone is an industrial multiple-purpose drive duplication unit that clones NVMe SSD and SAS/SATA drives, and also supports cloning across these two storage interfaces. It can be used to perform drive duplication, drive imaging, drive cloning, drive erase, drive diagnostics, selective capture, and quick format of hard drives and SSDs. The unit performs at a very high transfer rate in a secure Linux environment, and is operated via a user-friendly touchscreen application. It has a durable desktop-style build, with an eight-channel open tray for easy drive insertion and connection, four SAS/SATA ports, four NVMe U.2 and M.2 ports, and ten USB 3.1 ports (two of them Gen 2). By default, one SAS/SATA port and one USB port are set to perform as the source ports, but the user has the flexibility to assign each port of the unit as source or target.

This mode offers 100% bit-by-bit drive imaging. It works with any operating system and any file system, using a HASH verification mechanism that includes a HASH target drive and compares to the source drive for 100% verification of transferred data. The user can also image a portion of the drive by adjusting the percentage of the bit-by-bit mirror imaging.

Drives can also be duplicated in Quick Copy / Advanced Smart Copy mode. The application supports duplication of the files system only, from many source drives using FAT, NTFS, exFAT, HFS+, or Linux EXT2-4 file system to many target drives. Also, the application can automatically perform the following functions:

• Partition scanning on the source drives
• Partition scaling on the target drives
• Copy encrypted partition and unrecognized partition
• Scaling (options include scale all partitions, selectively scale partitions, disable scaling, and scale down partition)

This mode supports copying from source drives containing VHD files.

This mode supports selective capture of files and folders.

The application supports duplication of data from one source drive to many target drives, or from many source drives to many target drives with mix media.

The application supports independent channel/port erase operations using erase protocols such as DoD, Security Erase, Enhanced Security Erase, Sanitize, and User Erase mode.

The application supports quick formatting for NTFS, exFAT, FAT32, HFS+, and EXT4 file systems.

The user can run drive diagnostics on target drives. Supported diagnostics include S.M.A.R.T and Read-Verify tests, which report the location and number of bad sectors and weak media.

• Application is updated to clone Windows 10 source drives
• Supports SFF-8639 U.2 NVMe SSD, M.2 NVMe SSD, and PCIe controller
• Cloning from multiple source ports to multiple target ports
• Runs simultaneous, parallel, and independent duplication sessions
• Heavy duty, for 24/7 use
